Calculation of Heading and Ground Speed

Chapter 7 asked: I am pointing here, where will I end up? That is the question a radar controller creates for you. This chapter asks the question you ask, on every flight you ever plan — I want to end up there, so where do I point?

A flight planning chart on a table at dawn, a straight ruled track line drawn between two
points, with a navigation computer and a pencil beside it in low warm light. — **Opening plate** — The line on the chart is the track. It is the one thing you decide. Everything else in this chapter is the arithmetic of persuading an aeroplane to follow it.

Sixty seconds at the planning table

You have drawn a straight line from your departure to your destination and measured it: 040°(T). Your aircraft will true 146 knots. The forecast wind is 315/20.

Now answer the only question that matters before you start the engine: what number do you put on the compass?

It is not 040. If you fly 040 you will arrive somewhere to the right of where you meant to be, and the longer the leg the further right you will be. You have to aim off — upwind — and the whole skill is knowing by exactly how much, and what it costs you in speed over the ground.

Chapter 7 gave you the machinery. This chapter turns it around and points it at the real question.

1 · Three jobs, one triangle

Everything the wind face of a navigation computer has ever done — and everything the CX-3 does with a wind — is one of three jobs. They are the same triangle of velocities each time. What changes is which side you already know and which one you are hunting.

To find	From	When you use it	Where
Track Ground speed	Heading TAS W/V	When you are held on a heading somebody else chose — a radar vector, an engine-out drift-down, a mandatory departure heading.	Chapter 7
Heading Ground speed	Track TAS W/V	Flight planning, and re-planning in the air when the track changes or the wind turns out to be something else. This is the common one.	This chapter
W/V	Heading TAS Track Ground speed	Wind finding in flight. The wind you find is more recent and more local than any forecast you were handed on the ground.	Chapter 8B

The examiner will test all three, and will not tell you which is which

The three look alike on the page and the difference is only in which quantities the question hands you. Before you touch anything, do this: list what you were given.

Given a heading? Row one. Given a track and asked for a heading? Row two. Given both a heading and a track? Row three — you are finding the wind, and you should already be reaching for a different function.

It takes four seconds and it is the single highest-value habit in this chapter.

2 · Why Chapter 7 was not a warm-up

It is tempting to file "given heading, find track" as the easy one that exists only to explain the triangle. It is not. Here is the day it saves you.

You are established on airway R123, on a track you planned and a heading you worked out for it, with the forecast wind still set on your computer. At 1003 ATC gives you a mandatory radar heading of 030°(T) for traffic. You come off the airway. You note your VOR/DME position at that moment — and this is the habit that matters, because it is the last certain thing you will have for six minutes.

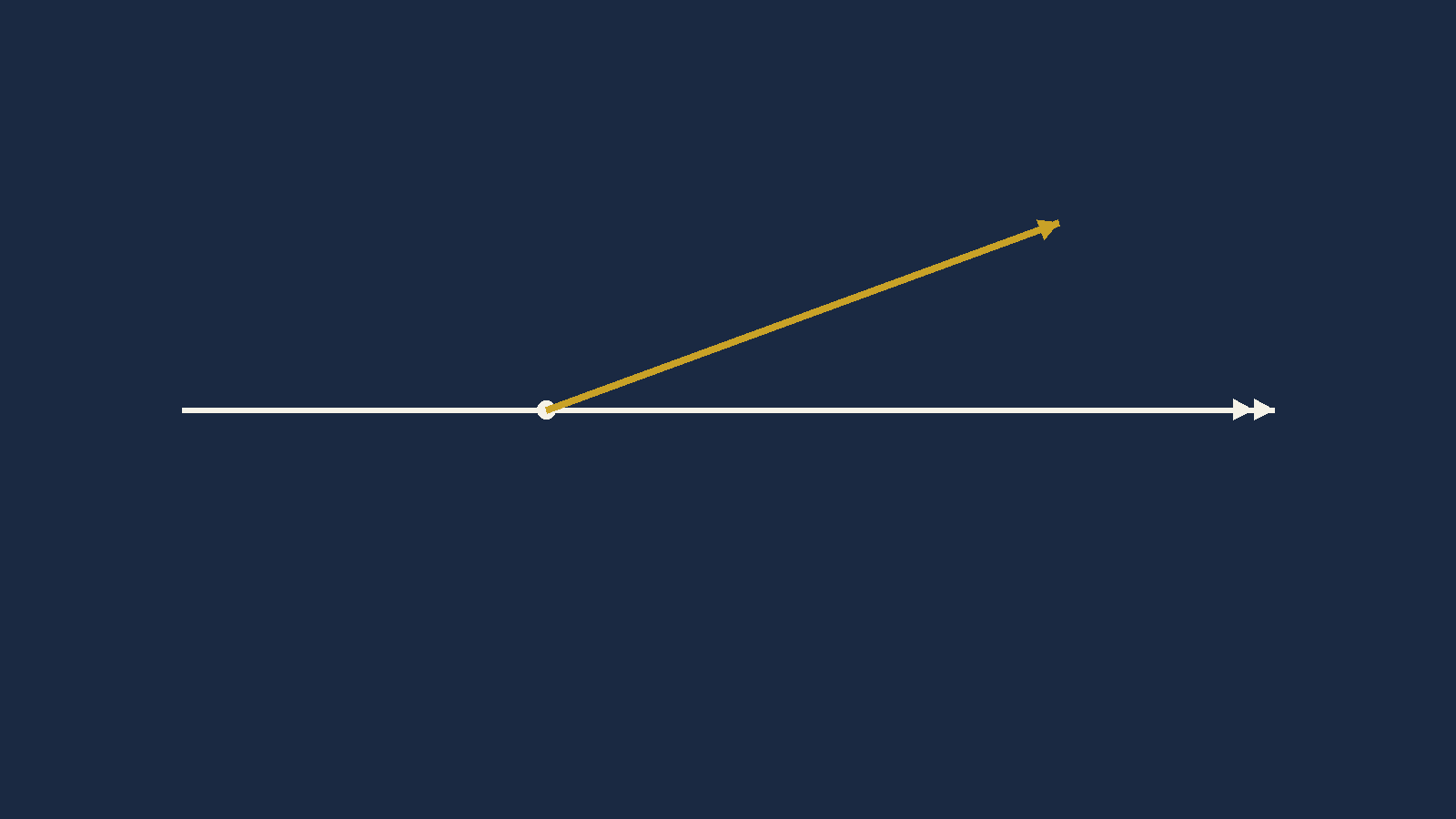

A chart view of an airway running between two navigation points, with an aircraft
symbol departing the airway on a diverging heading arrow at a marked time. — **Figure 8.1** — Cleared off the planned track on a radar heading. The airway is still where it was. You are not.

At 1009 the conflict clears and you are told: own navigation to Clacton. At the same moment the VOR unlocks. You have no area navigation. Where are you, and what track takes you to Clacton?

The six minutes, worked. Forecast W/V 315/15, TAS 160 kt, heading flown 030°(T), from 1003 to 1009.

Method 1 — the arithmetic

Case 1: heading known, track wanted

1. The wind is from 315, so it points toward 135°.

2. Add the two vectors, east and north:
E = 160·sin030 + 15·sin135 = 90.61
N = 160·cos030 + 15·cos135 = 127.96

3. Ground speed: √(90.61² + 127.96²) = 156.8

4. Track: tan⁻¹(90.61 ÷ 127.96) = 35.3°

Track 035°(T) · GS 157 kt · drift 5°S

Method 2 — the CX-3

the planning menu, run forwards

The CX-3 has two wind functions. PLAN takes TCrs, TAS, WDir, WSpd and returns GS and CHdg.
FLT → Wind Correction takes GS, TAS, TCrs, THdg and returns the wind.
Neither of them answers this question. Heading plus wind, solving for track, is not a function on the machine.
So this one is trigonometry, on the CALC keypad. Four lines, and it is exact.

Not a CX-3 function — use Method 1

Which do you use? There is no choice here, and that is worth knowing before you are sitting in cloud with six minutes of DR to run. The CX-3's two wind functions solve the planning problem and the wind-finding problem. The Chapter 7 case — heading and wind in, track out — is a genuine gap in the instrument. Know the triangle and you are never stuck; reach for a menu and you will hunt for a function that does not exist.

Now the part that turns a number into a position. Six minutes is one tenth of an hour. At 157 knots over the ground that is 15.7 nautical miles. From the position you noted at 1003, draw 035°(T) and step off 15.7 miles. That is your DR position — dead reckoning — and it is the best estimate anyone can give you.

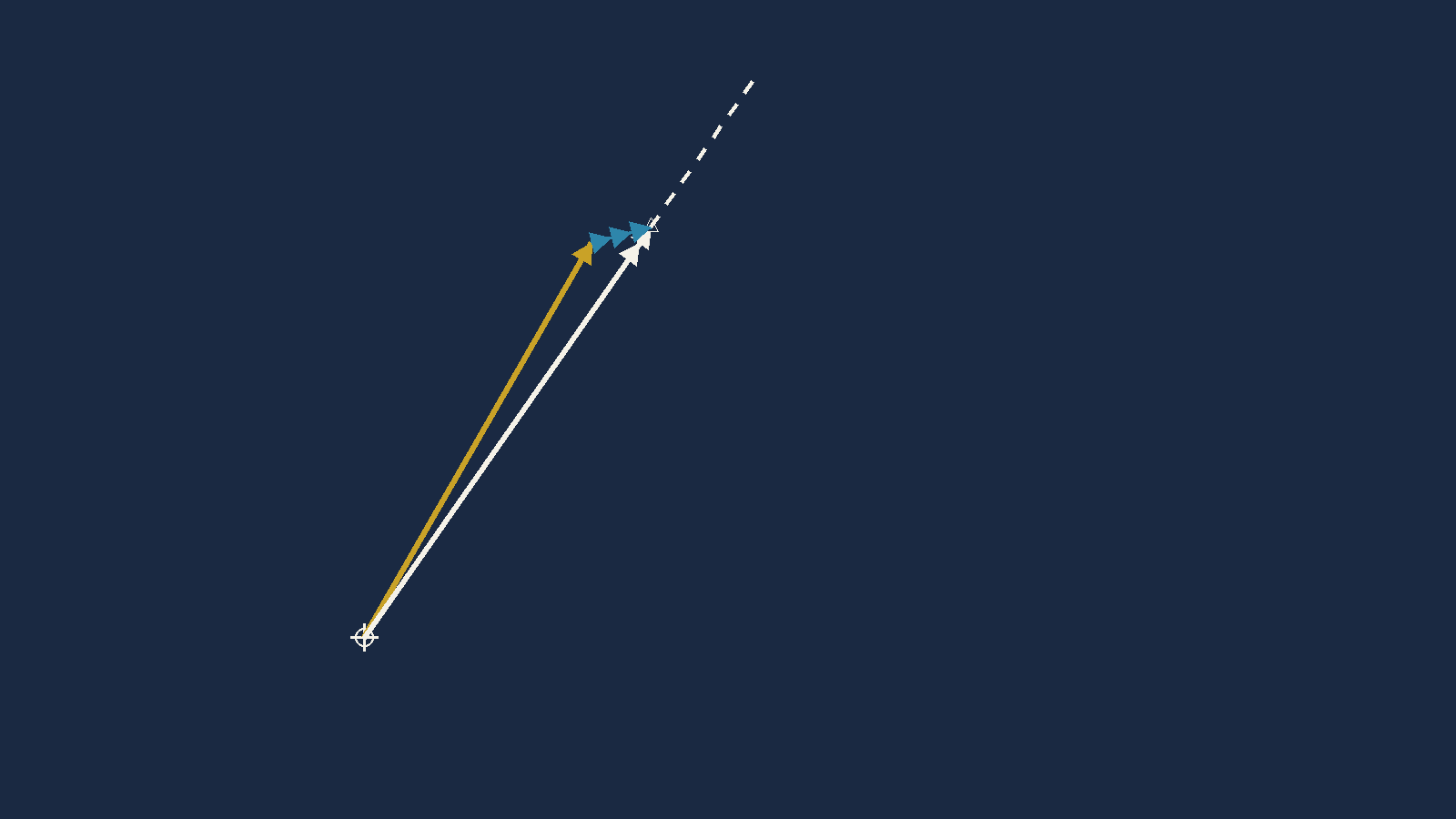

A chart construction showing a known fix, a track line stepped off by a measured
distance to a dead reckoning position, and a new line drawn from there to a destination. — **Figure 8.2** — Known fix, plus track, plus distance run, equals DR position. Draw from there to Clacton and you have your new desired track — which is a Chapter 8 problem all over again.

Note what just happened, because it is the shape of real navigation

You used row one of the table to find where you had got to, and then immediately needed row two to work out the heading that would take you to Clacton from there.

The three jobs are not three separate exam topics. They are three moves in one continuous argument with the wind, and a real flight uses all of them inside ten minutes.

3 · Solving for heading and ground speed

This is the one you will use for the rest of your flying life. You join your turning points on the chart with a ruler and measure the line. The track is now known. What you do not know is the heading that will hold you on it, because the wind is going to push you off, and you do not know your ground speed, because the wind is going to help or hinder you along the way.

Take the example from the planning table:

TAS — 146 kt
W/V — 315/20
Desired track — 040°(T)

First, see the mistake

Before the correct method, fly the wrong one for a moment, because the wrong one is what the exam options are built from.

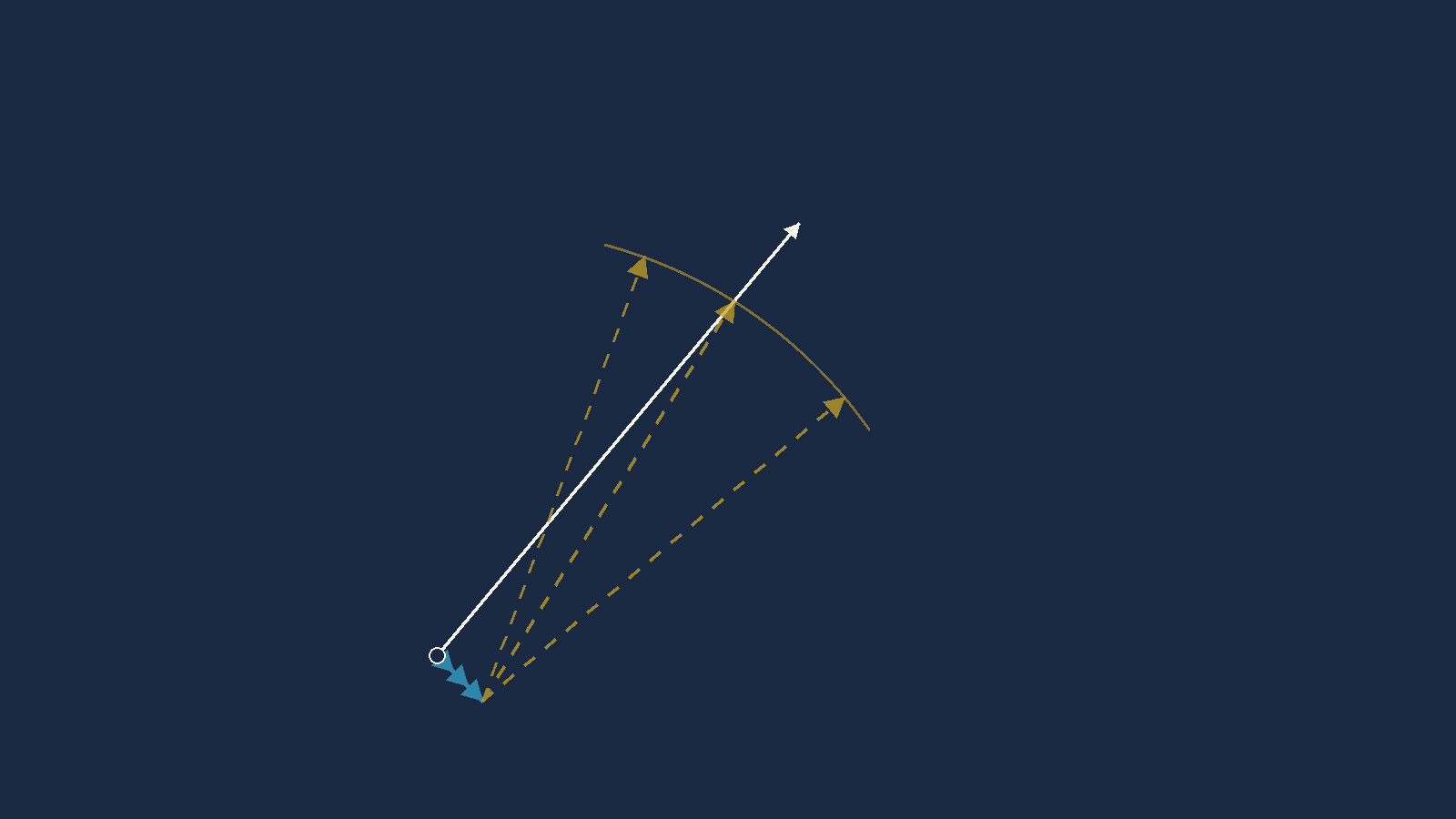

A vector diagram showing a desired track line drawn from an origin, a wind vector
attached at the origin, and the air vector shown as an unknown dashed line whose direction
has yet to be found. — **Figure 8.3** — The shape you have to close. You know the wind, you know how long the air vector is (146 knots), and you know which line the answer has to lie along (040°). The only unknown is *which way the air vector points*.

Suppose you simply set 040° as the heading and flew it. Run Chapter 7's arithmetic on that and you get a track of 048° — eight degrees of starboard drift, and eight degrees to the right of where you wanted to be.

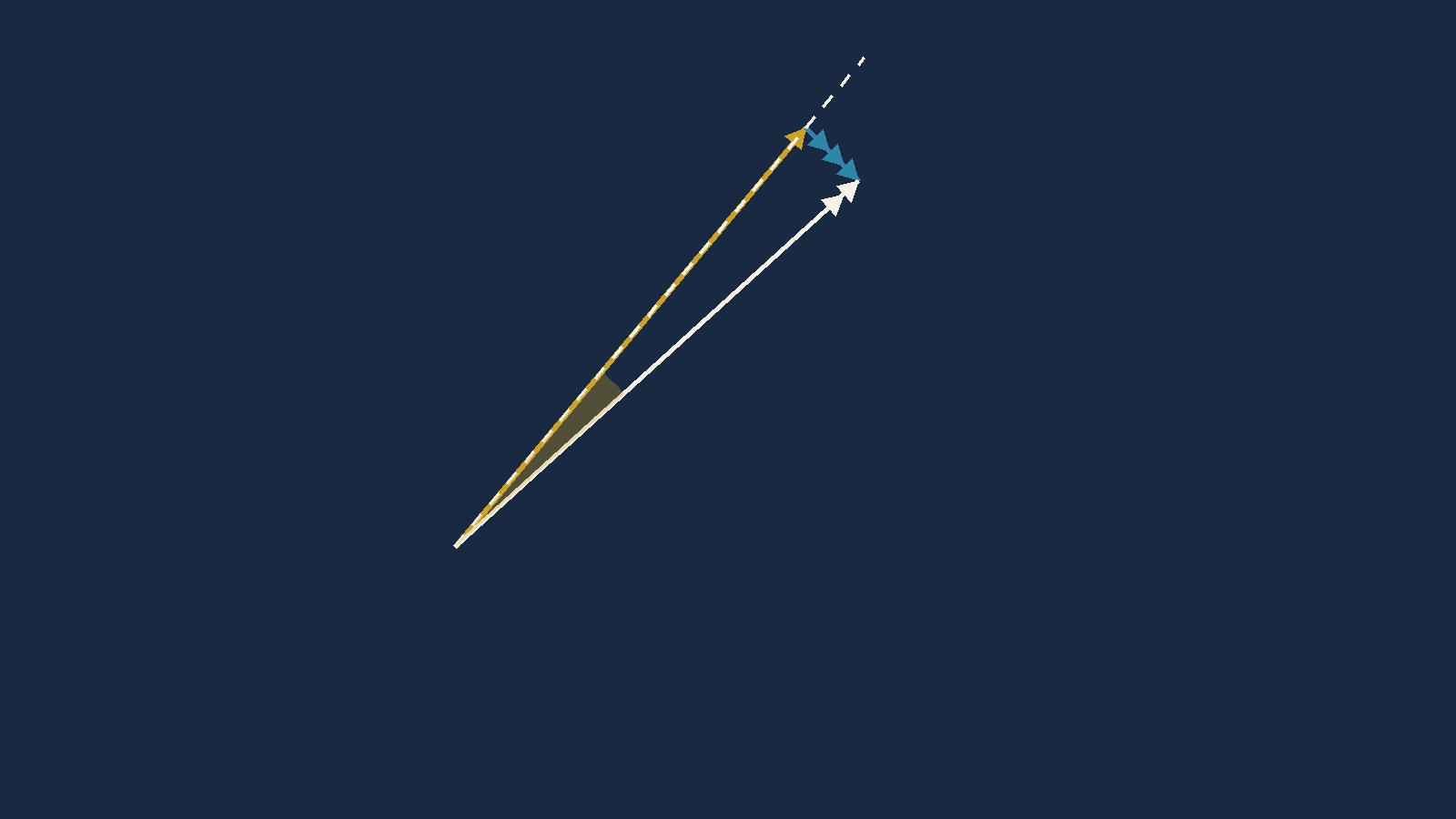

A vector diagram with the air vector pointing along 040 degrees, the wind vector added
at its tip, and the resulting ground vector lying 8 degrees to the right of the intended
track line, the gap between the two clearly shaded. — **Figure 8.4** — Heading 040° gives a track of 048°. The wedge between the white ground vector and the track you wanted is the whole problem, and over 100 nautical miles it is fourteen miles of error.

Read that drift figure again, because it is the key to the whole method

Flying 040 gave 8° starboard drift. So the fix is to aim 8° to the left — try 032 — and the wind will push you back onto 040.

That is the reasoning, and it is correct. The only question left is whether the drift is still 8° once you have swung the nose, and that is Section 4.

Now solve it properly

Drift and WCA are the same number with opposite signs — and only one of them belongs in the formula

Chapter 7 defined them as a mirrored pair. Heading 090, track 097 means drift +7° (starboard) and WCA −7°. Same seven degrees, opposite sense.

The formula below computes the drift, not the WCA. sin⁻¹(W·sinθ ÷ TAS) is the angle at the aircraft between the air vector and the ground vector, and that angle is the drift. So it goes into the identity you already know, read backwards:

Track = Heading + Drift → Heading = Track − Drift

Why this matters more than a naming quibble. Take the same wind and put Chapter 7’s signed WCA into this chapter’s subtraction by mistake: 040 − (−7.84) = 047.8. You have aimed 16 degrees the wrong way — and it is the reversed-wind error the sanity check on the next page is built to catch. One quantity per formula. The formula takes drift.

And on the machine: the CX-3’s FLT → Wind Correction function outputs a field called WCA. It is an output you read, never an input you compute with, so its sign convention cannot bite you here — but check which way your unit signs it before you quote it in an answer.

Worked example 8A.1. TAS 146 kt, W/V 315/20, desired track 040°(T). Find the heading to fly and the ground speed.

Method 1 — the arithmetic

one formula, no iteration, exact

1. Turn the wind round. From 315 means it points toward 135°.

2. Angle between the wind and the track:
θ = 135 − 040 = 95°

3. The drift you are going to get (starboard positive):
Drift = sin⁻¹(20 × sin95 ÷ 146)
= sin⁻¹(19.92 ÷ 146)
= sin⁻¹(0.1365) = 7.84°

4. Heading: HDG = 040 − 7.84 = 032.2°

5. Ground speed:
GS = 146·cos(7.84) + 20·cos(95)
= 144.63 − 1.74 = 142.9

HDG 032°(T) · GS 143 kt

Method 2 — the CX-3

this is what the PLAN menu is for

PLAN → open a leg.
TCrs = 040 — the track you measured off the chart, not the heading.
TAS = 146.
WDir = 315, WSpd = 20. Enter the wind as it is given — the direction it comes from. The machine turns it round for you.
Var = 0 and Dev = 0. See the red box below. This step is not optional.
Read CHdg and GS.

HDG 032°(T) · GS 143 kt

Which do you use? Both, and for different reasons. In an exam with one triangle to solve, the formula is four keystrokes on a scientific calculator and it never asks you what the variation is. On a real flight plan with six legs, the PLAN menu carries the wind, TAS, variation and fuel flow across every leg and totals the trip at the bottom — and that is Chapter 8B.

Sanity check — do this before you believe any answer. The wind is from 315, which is off your left shoulder on a track of 040. So it must push you right, and you must therefore aim left. Heading 032 is left of track 040. Correct.
And it is very nearly a pure crosswind (θ = 95°, almost square on), so it should barely change your speed along the track. Ground speed 143 against a TAS of 146 — three knots lost. Correct.
If you had produced heading 048 and ground speed 146, you would have applied the wind backwards — and both errors appear together. The heading has swung 8° to the wrong side of the track, and the three knots you should have lost have become a small gain, putting the ground speed just above the TAS instead of just below it. Whenever the wind is forward of the beam and your ground speed comes out higher than your TAS, you have reversed the wind.

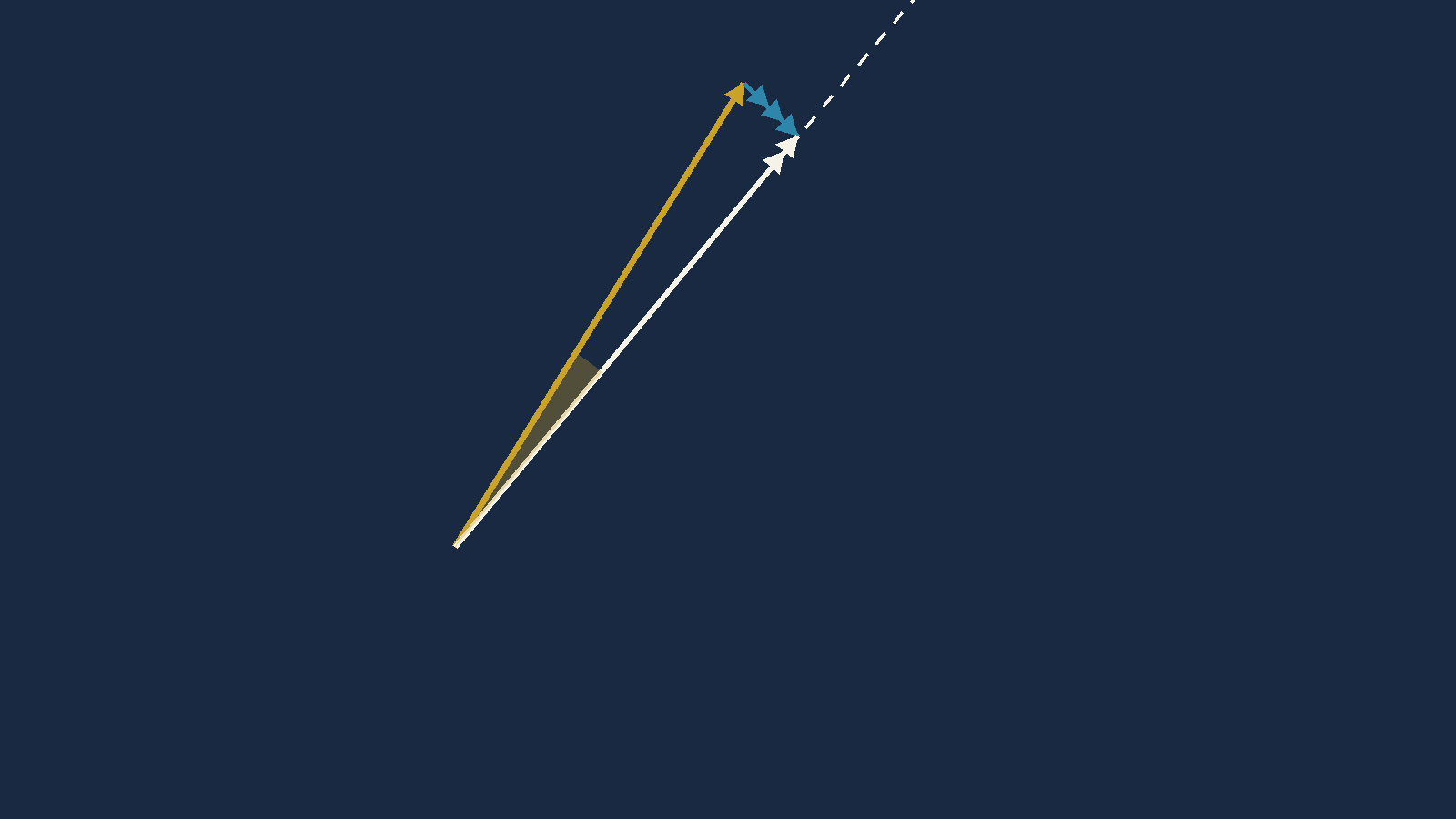

A vector diagram with the air vector swung eight degrees to the left of the desired
track, the wind vector added at its tip, and the resulting ground vector now lying exactly
along the desired track line. — **Figure 8.5** — Heading 032°. The wind still pushes 8° right, and 8° right of 032 is exactly 040. The triangle has closed on the line you wanted.

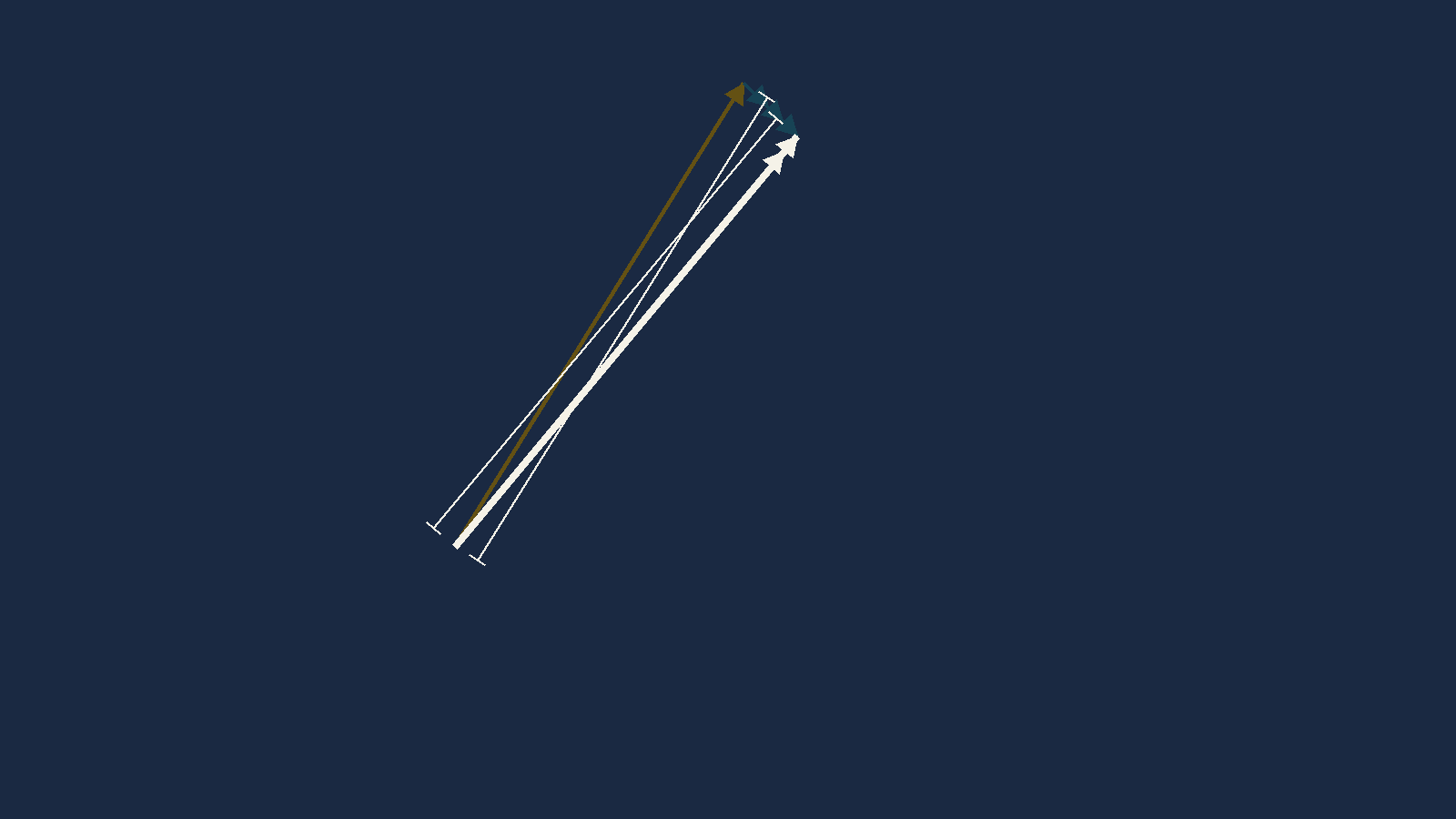

The same closed triangle with the ground vector emphasised and its length called out
against the length of the air vector, showing the ground vector as slightly the shorter of
the two. — **Figure 8.6** — The answer was never only the heading. The *length* of the closing side is the ground speed — 143 knots — and that is the number that decides your fuel and your ETA.

The trap that will cost you the mark: PLAN gives you a COMPASS heading

The CX-3's PLAN leg outputs a field called CHdg — compass heading. Its per-leg inputs include Var and Dev.

Every question in this chapter is worked in degrees TRUE. If a variation is left sitting in that field from a previous problem, the number the machine hands you is not the answer to the question you were asked, and it will be wrong by exactly the variation — which in India is enough to land you on a different option.

Set Var = 0 and Dev = 0 before every true-heading problem, and check them, every time. With both at zero the compass heading, the magnetic heading and the true heading are the same number, and the output is the answer.

How I know: the CX-3 User's Guide V1.3 lists the PLAN leg inputs as Dist, TCrs, TAS, WDir, WSpd, Var, Dev, Rate, Dep, and its outputs as GS, CHdg, ETE, Fuel. That variation and deviation of zero collapse compass onto true is arithmetic, not a quotation. FLAGGED: whether the leg screen also displays a true heading beside CHdg is not stated in the Guide and needs one look at a physical unit.

The trap next to it: "Wind Correction" does not correct for wind

There is a function on the CX-3 called Wind Correction, under FLT. Its name is exactly what you are looking for and it is not what you want.

It takes GS, TAS, TCrs and THdg, and it returns WSpd, WDir and WCA. It solves for the wind. It is row three of the table in Section 1, and it belongs to Chapter 8B.

To go from a known wind to a heading, you want PLAN. A student who has understood the triangle never gets this wrong; a student who has memorised menu names gets it wrong under time pressure, every time.

4 · When the drift changes under you

In the last example the drift was 8° starboard on a heading of 040 and it was still 8° starboard on a heading of 032. That is a convenient accident of that particular triangle, and it is not a rule.

Whether the drift changes when you swing the nose depends on three things: how big the wind is compared with the TAS, how far you swing, and what angle the wind was making with the heading to start with.

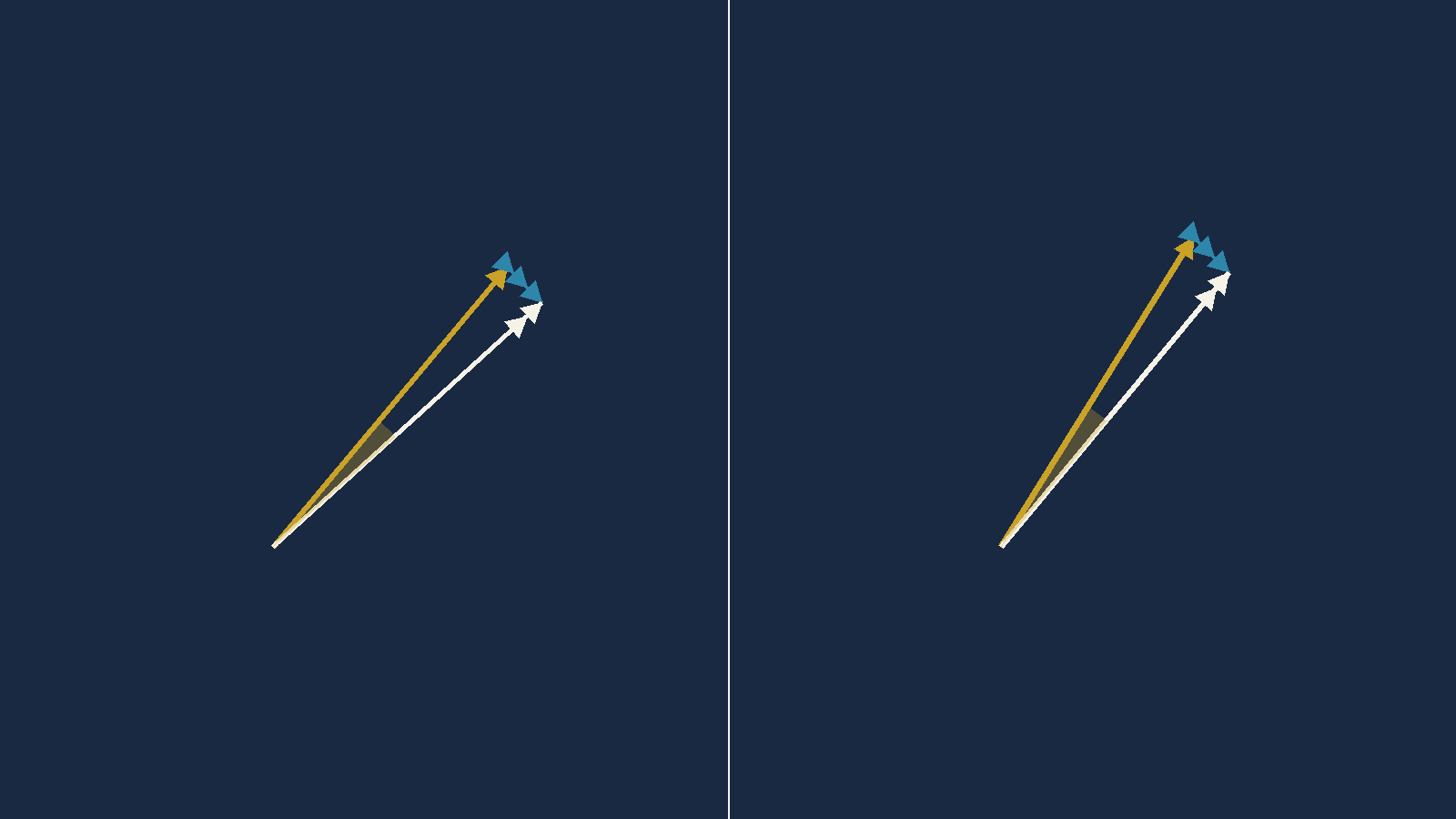

Two vector triangles drawn side by side with the same wind vector, the second having
its air vector rotated, and the drift angle at the tip appearing the same size in both. — **Figure 8.7** — A heading change that leaves the drift where it was. The two wedges are the same size. This is the comfortable case, and it is the one the last example happened to be.

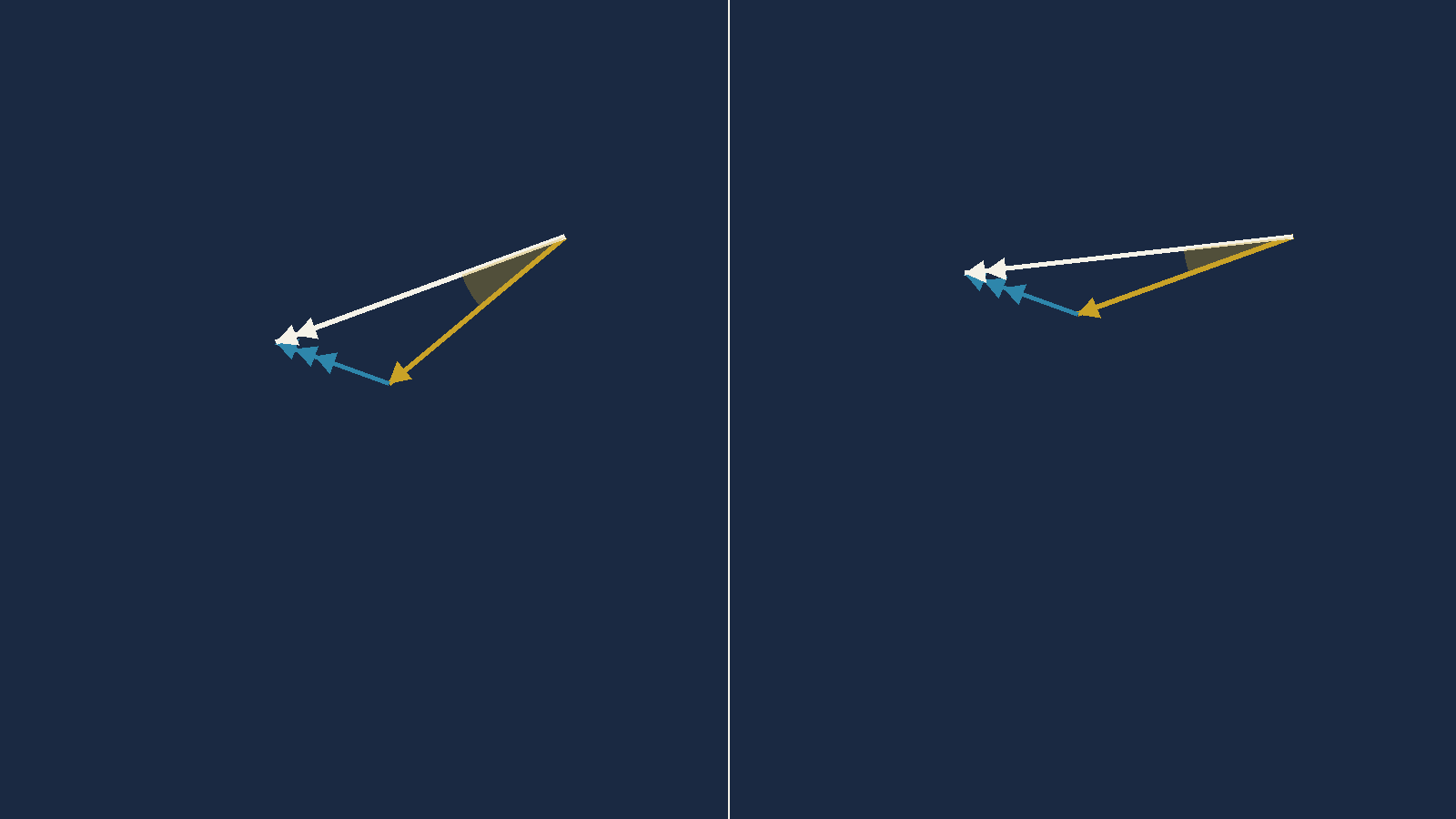

Two vector triangles side by side with the same wind vector, the second having its air
vector rotated, and the drift angle at the tip visibly smaller in the second than the first. — **Figure 8.8** — The same wind, a different swing, and the drift has shrunk. The second wedge is plainly smaller than the first. **This is the normal case, not the exception.**

Why this section exists at all

On a rotating-disc computer, changing drift is a real operational problem: your first guess at a heading gives you a drift, you apply it, and the drift you read the second time is a different number. So you go round again. And again.

On a CX-3, and in the formula, this problem does not arise. The wind correction angle is computed from the geometry in one step. There is no first guess to be wrong about.

You still need to understand it, for two reasons. It is examinable. And it is the thing that tells you, in the air, that a small heading change on a windy day is not a small change to your track.

5 · Balancing the drift — the loop you will never fly

The classical procedure for the analogue computer is called balancing the drift. It is a guess-and-check loop, and it is worth exactly one read, because the moment you understand why it existed you will understand what the electronic computer actually did for you.

Take a hard case — a slow aeroplane in a strong wind, which is where the loop bites:

TAS — 76 kt
W/V — 110/40
Desired track — 230°(T)

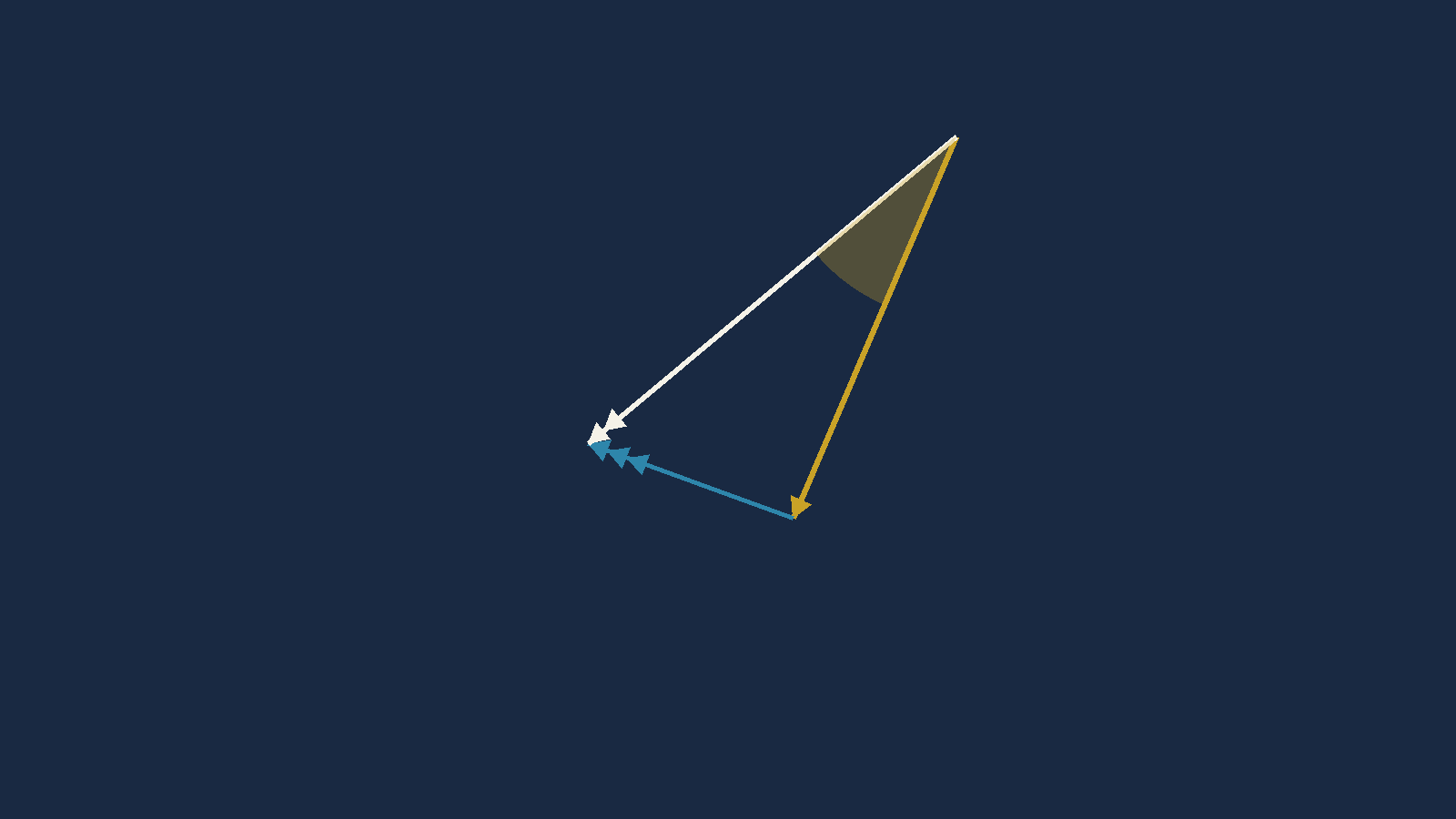

A vector diagram in which the wind vector is more than half the length of the air
vector, producing a markedly skewed triangle with a wide angle between the air vector and
the ground vector. — **Figure 8.9** — W/V 110/40 against a TAS of 76. The wind is more than half the aeroplane's own speed. Look at how far the closing side swings away from the nose — this is what a light aircraft in a strong wind actually looks like.

What the loop does, and where it lands

Set the desired track against the heading index and read the drift. It is 20° starboard. So swing 20° left and look again — and the drift has grown to 25°. Swing to 25° and look again: 27°. Swing to 27°: still 27°. It has stopped moving, and you have your answer.

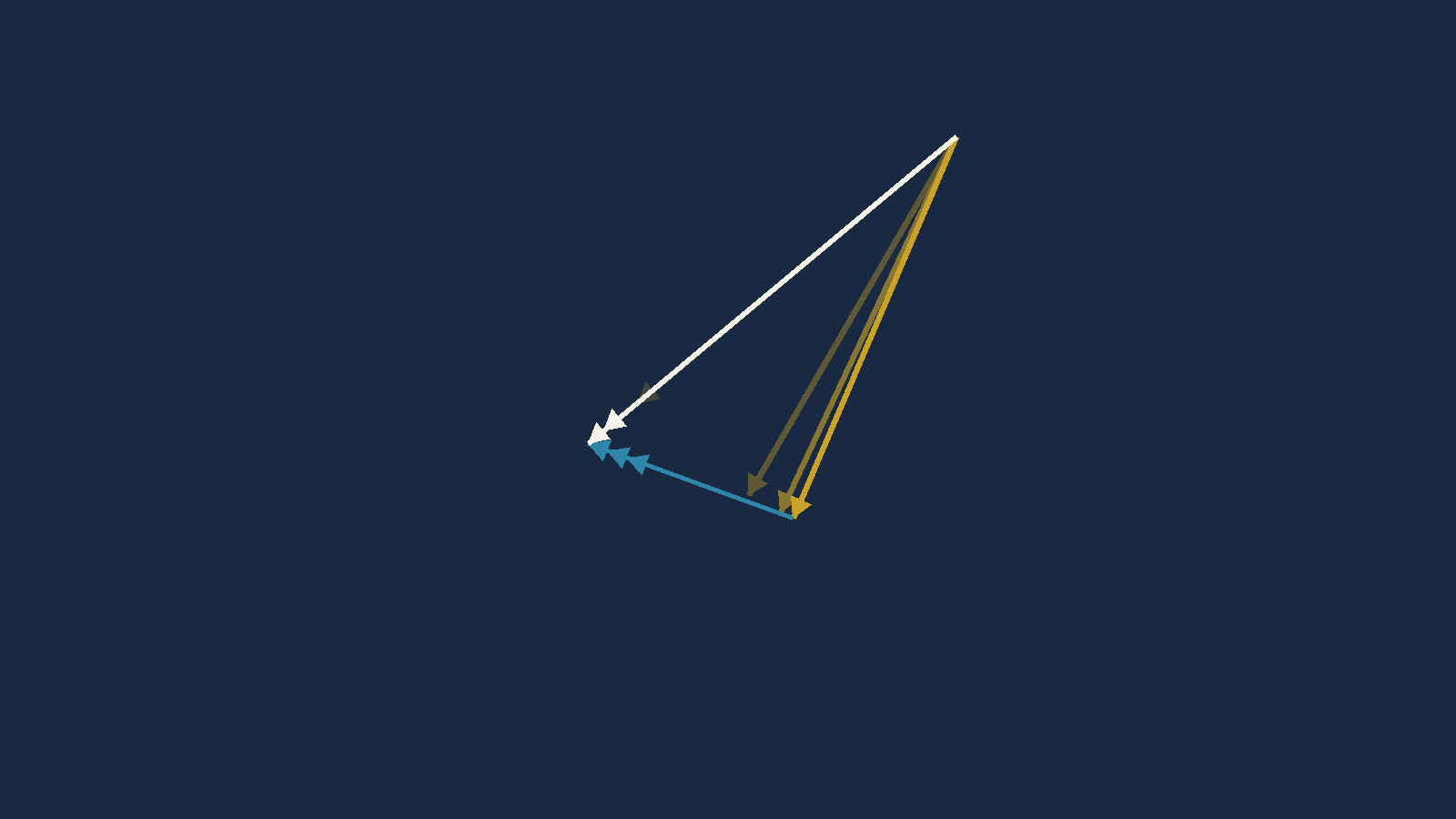

A vector diagram showing three faint intermediate air vectors at progressively larger
correction angles converging toward one solid final air vector, with the ground vector
lying along the desired track only in the final case. — **Figure 8.10** — The loop, drawn as it actually behaves: three guesses closing in on one answer. Each ghost is a heading that was nearly right. **The CX-3 goes straight to the solid one.**

Here is that loop with the arithmetic run alongside it, so you can see that the old procedure and the modern formula are the same mathematics wearing different clothes:

Attempt	Heading tried	Track it gives	Drift read	Book reads	On track?
1	230	249.8	19.8°S	20°S	no — 20° right
2	210	235.4	25.4°S	25°S	no — still right
3	205	231.6	26.6°S	27°S	nearly
4	203	230.1	27.1°S	27°S	yes

Every drift figure the source book reads off the disc is reproduced by the arithmetic to within half a degree. The loop is not folklore — it genuinely converges. It is simply slow.

Worked example 8A.2. The same problem, solved in one step. TAS 76 kt, W/V 110/40, desired track 230°(T).

Method 1 — the arithmetic

no loop, no guessing, one pass

1. Wind from 110 points toward 290°.

2. θ = 290 − 230 = 60°

3. Drift = sin⁻¹(40 × sin60 ÷ 76)
= sin⁻¹(34.64 ÷ 76)
= sin⁻¹(0.4558) = 27.1°

4. HDG = 230 − 27.1 = 202.9°

5. GS = 76·cos(27.1) + 40·cos(60)
= 67.65 + 20.00 = 87.6

Watch the rounding. 87.6 rounds to 88. The published answer is 87, read off a disc. Half a knot on a 76-knot aeroplane changes nothing — but say 88 if you are asked to round.

HDG 203°(T) · GS 87.6 kt

Method 2 — the CX-3

identical keystrokes to the last example

PLAN → open a leg.
TCrs = 230.
TAS = 76.
WDir = 110, WSpd = 40.
Var = 0, Dev = 0.
Read CHdg and GS.

HDG 203°(T) · GS 87 kt

Four attempts, or one line. That is the whole argument for the electronic computer, and it is why this course does not teach you to balance the drift. Understand the loop; do not run it.

Sanity check. The wind is from 110 and you are going to 230 — that is a wind on your left, and behind you. Behind, so ground speed should beat TAS: 87 against 76, yes. On the left, so it pushes you right and you aim left: 203 is left of 230, yes.
Twenty-seven degrees of correction is enormous, and it should be — a 40 knot wind on a 76 knot aeroplane. If a light aircraft question ever gives you a single-figure correction with a wind that size, check it again.

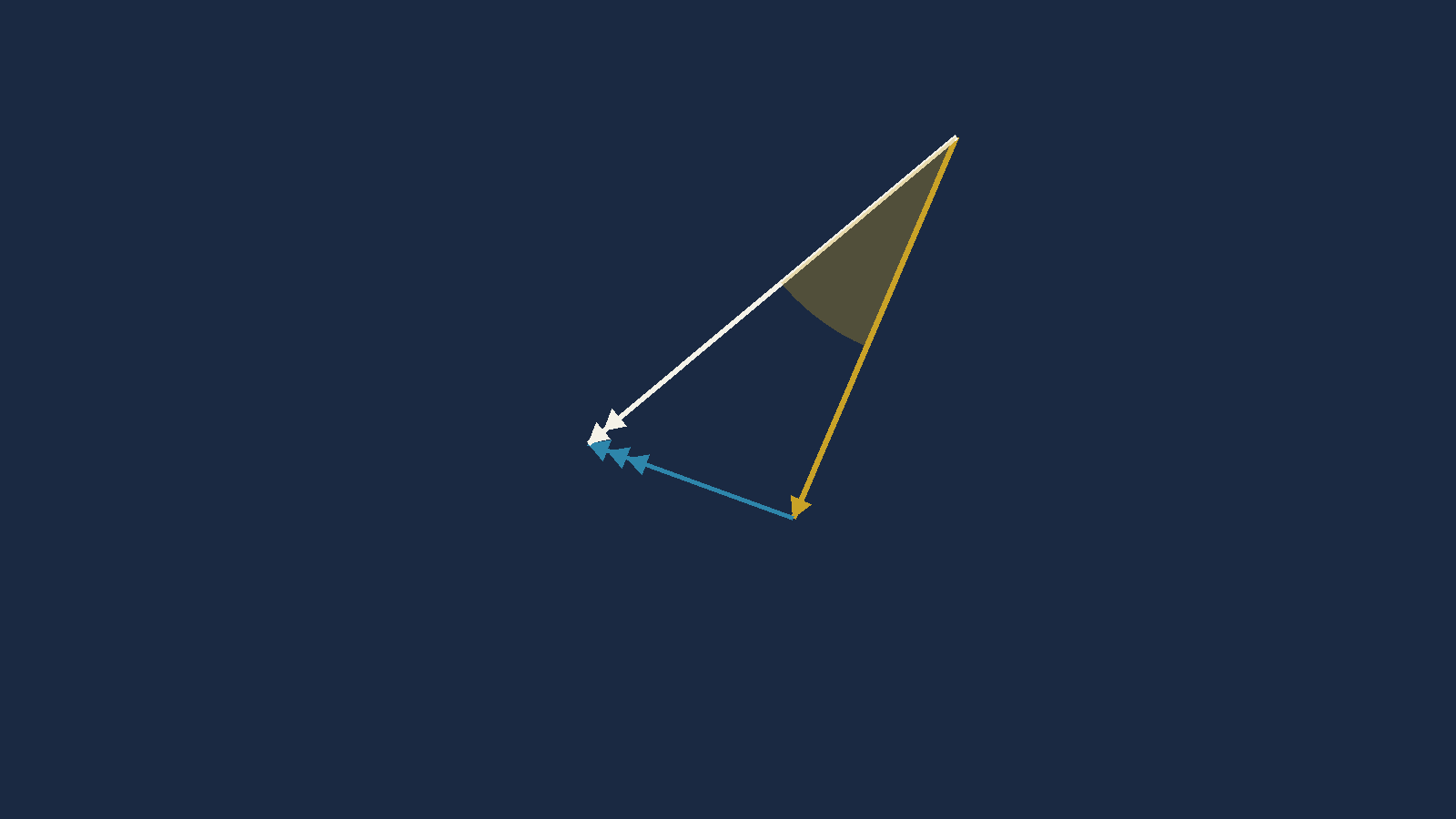

A single closed vector triangle with the air vector swung well left of the desired
track, the wind vector added at its tip, and the ground vector lying exactly along the
desired track line, the correction wedge between them clearly the largest in the chapter. — **Figure 8.11** — The balanced solution. Heading 203°, 27° of starboard drift, track 230°, and a ground vector that is *longer* than the air vector because the wind is behind you. Every guess in Figure 8.10 was trying to reach this one shape.

The examinable residue, in three lines

You will not be asked to run the loop. You may well be asked what it was for. The answer:

1. The first drift you read is the drift for the wrong heading, so it is only a first approximation.
2. Applying it changes the geometry, so the drift changes too.
3. The loop repeats until the drift you apply and the drift you read are the same number — that is what "balanced" means, and it is the same condition the formula satisfies in one step.

Questions

What you are given, and what you are finding

Each row hands you a W/V, a track you must make good, and a TAS. Two columns are blank: heading and ground speed.

This is row two of the Section 1 table — the planning case — thirty times over. All directions are degrees TRUE. There is no variation anywhere in this set, which is exactly why Var and Dev must be sitting at zero before you start.

Work across the rows, one row at a time. Do not do them column by column. Going by rows makes you think about what each operation is for; going by columns turns it into typing.

Set one — ten rows, and the speeds are deliberately mixed: rows 1 to 4 are light-aircraft speeds, rows 5 to 10 are jet cruise. Nothing about the method changes between them, and that is the point — but your sanity check does. A 15° correction is ordinary at 94 knots and impossible at 620. Do these on the formula first, then repeat the set on the CX-3 and check that the two agree. If they ever disagree by exactly the variation, you know what you forgot.

#	W/V	Track required°(T)	TAS
1	040/40	155	140
2	280/27	226	94
3	320/14	198	136
4	190/52	284	260
5	270/83	132	544
6	310/105	262	572
7	300/60	355	620
8	270/75	113	570
9	240/80	301	455
10	210/55	313	545

Set two — twenty rows, mixed again, from 74 knots to 620. Watch the rows where the wind is nearly straight down the track: the correction angle collapses to almost nothing while the ground speed moves a very long way. Those two facts are independent, and exam distractors are built out of confusing them.

#	W/V	Track required°(T)	TAS
11	335/75	220	553
12	040/20	005	110
13	125/35	045	196
14	170/23	113	210
15	145/20	021	80
16	170/30	287	220
17	300/30	200	137
18	180/40	130	190
19	280/24	116	199
20	262/90	234	605
21	210/80	071	620
22	190/80	339	523
23	305/30	038	585
24	295/60	355	515
25	340/85	091	588
26	235/66	032	485
27	055/35	197	176
28	255/15	018	180
29	090/15	147	74
30	020/25	140	99

Answers

Read the drift column, not just the heading

The drift column is not in the source book. It is here because it is the quantity you can check in your head: wind from the left must give starboard drift and a heading left of track, and wind from the right must give the mirror image. If a heading you calculated has drift on the wrong side, you have applied the wind backwards, and no amount of re-reading the arithmetic will show it to you as fast as that one glance.

#	HDG°(T)	W/V	Track°(T)	TAS	GS	drift
1	140	040/40	155	140	152	15°S
2	239	280/27	226	94	76	13°P
3	203	320/14	198	136	143	5°P
4	272	190/52	284	260	258	12°S
5	138	270/83	132	544	603	6°P
6	270	310/105	262	572	496	8°P
7	350	300/60	355	620	584	5°S
8	116	270/75	113	570	638	3°P
9	292	240/80	301	455	411	9°S
10	307	210/55	313	545	555	6°S

#	HDG°(T)	W/V	Track°(T)	TAS	GS	drift
11	227	335/75	220	553	581	7°P
12	011	040/20	005	110	93	6°P
13	055	125/35	045	196	187	10°P
14	118	170/23	113	210	197	5°P
15	033	145/20	021	80	89	12°P
16	280	170/30	287	220	232	7°S
17	212	300/30	200	137	139	12°P
18	139	180/40	130	190	162	9°P
19	118	280/24	116	199	222	2°P
20	238	262/90	234	605	524	4°P
21	076	210/80	071	620	678	5°P
22	334	190/80	339	523	590	5°S
23	035	305/30	038	585	586	3°S
24	349	295/60	355	515	482	6°S
25	083	340/85	091	588	613	8°S
26	029	235/66	032	485	545	3°S
27	190	055/35	197	176	202	7°S
28	014	255/15	018	180	188	4°S
29	137	090/15	147	74	65	10°S
30	127	020/25	140	99	109	13°S

What I checked in this answer key, and what I did not

Every one of the thirty rows was recomputed from first principles — full vector solution, not the small-angle approximation — and compared against the printed key.

All thirty headings agree to within half a degree. Every one rounds to the printed value. There is no disputed heading anywhere in this set.

All thirty ground speeds agree to within 1.2% — 24 of 30 within 2 knots, the largest single residual 3.15 knots on a ground speed of 675 (row 21). That spread is exactly what reading an analogue disc to the nearest small division produces at these speeds, and none of it is large enough to move an exam answer onto a different option.

This is a sound question set. That is worth saying plainly, because it is not true of every set in this book — Chapters 5 and 6 each carried real arithmetic errors that are flagged in their own chapters. This one came through clean.

One typographical defect in the source, for completeness: in the printed answer table, row 12's wind is set as O40/20 — a capital letter O where a zero belongs. The value is 040/20 and nothing depends on it, but it is the kind of character that breaks an automated extraction silently, and it is recorded here so nobody chases it twice.

The chapter in six lines

Take these into the exam

Three jobs, one triangle. Given a heading, you are finding track. Given a track, you are finding heading. Given both, you are finding wind. Name the job before you touch anything.
Wind toward = W/V + 180. More marks are lost on this one line than on any other in navigation.
Track = Heading + Drift, starboard positive. Turned round for this chapter: Heading = Track − Drift. It is the same identity read right to left, and it is the only rearrangement you need.
Drift = sin⁻¹(W · sinθ ÷ TAS), where θ is the angle between the wind-toward direction and the track. Then GS = TAS·cos(Drift) + W·cosθ. The wind correction angle is that same number with the sign reversed — Chapter 7’s definition, unchanged. Compute with drift; report WCA.
On the CX-3 this is PLAN, not Wind Correction. Wind Correction solves for the wind. And set Var and Dev to zero for any true-heading question.
Sanity-check the side. Wind on your left pushes you right, so you aim left. Wind behind you raises ground speed above TAS. Two seconds, and it catches the reversed-wind error every time.

Next — Chapter 8B: the Practice Flight Plan, where the PLAN menu stops being a way to solve one triangle and becomes a flight plan with legs, totals, fuel and an ETA — and where variation finally enters, with the sign trap that comes with it. Then wind finding: row three of the table, and the one job left.

Capt. Pankaj Pahil · www.GhostAviator.com

Study Navigation with other student pilots

Join the free Navigation group on Telegram. Stuck on a doubt? Type /q and your question, and get an answer from Ghost Aviator's notes.

Join the Navigation group →

LIVE BATCH

Study General Navigation live with the Captain

Small batch of 10 · live doubt-clearing · 4–6 weeks · ₹12,999 ₹7,999

Reserve a Seat Ask instantly on Telegram Details

Ch.36: CX-3: Triangle of Velocities

↑ All Chapters

Ch.38: CX-3: Multi-Drift and Wind Components

Reinforce Chapter 37: CX-3: Heading and Groundspeed

Test your knowledge and practice actual exam questions for Air Navigation.

Chapter Quiz Question Bank Past Papers

Planning your Pilot Training in 2026?

Calculate exact flying hours, DGCA exam fees, and living costs with our interactive calculator.

CPL Cost Calculator →
