NAVIGATION — CHAPTER 35 · NOTES

CX-3: True Airspeed and Altitude

by Ghost Aviator

Chapter Quiz
STUDY AID — PENDING INDEPENDENT AUDIT These notes are study aids for DGCA examination preparation. They are PENDING INDEPENDENT AUDIT and must not be used for operational flight planning. Always verify procedures against current AIPs, NOTAMs, and your operator's manuals.
General Navigation · The Navigation Computer

Chapter 6
TAS and Altitude Conversions

Four numbers claim to tell you how fast you are going and how high you are. Only two of them are true, and neither is the one on the dial.

Sixty seconds in the cockpit

Winter night, non-precision approach into a valley aerodrome. Outside air temperature −25 °C. The step-down fix calls for 3,000 feet and your altimeter reads exactly that, with the correct QNH set. You are stable, configured, and legal.

You are also about 400 feet lower than the altimeter says.

The instrument is not broken. It is calibrated for a standard day, and this is not one. Cold air is dense air, pressure falls away faster with height, and the altimeter counts pressure — so it hands you back a number that is too big. On a cold day you are always lower than you think. This chapter is where you learn to know by how much.

1 · Four airspeeds, one chain

The airspeed indicator does not measure speed. It measures the pressure of air being rammed into a tube on the nose, and then assumes a great deal about the air in order to turn that pressure into a number of knots.

Every one of those assumptions has to be corrected, in a fixed order. Learn the order once and the whole chapter follows from it.

The airspeed correction chain from indicated to true airspeed Indicated airspeed is corrected for instrument error and pressure or position error to give calibrated airspeed. From calibrated airspeed there are two paths. At low speed, correcting density error alone gives true airspeed directly. At high speed, correcting compressibility first gives equivalent airspeed, and then correcting density error gives true airspeed. The dividing line is 300 knots true airspeed. IAS what the dial shows instrument + pressure error — from the correction card CAS older books call this RAS low speed high speed correct density error only correct compressibility first EAS you will rarely meet this in the air then density error TAS your actual speed through the air The rule that decides which path you are on Work out TAS the low-speed way first. If it comes out at 300 kt or less, you are finished.
Figure 6.1 — The correction chain. Two of these four are instrument readings dressed up as speeds; only TAS is the speed you are actually flying through the air.
instrument values the answer you want the high-speed detour
The four, in plain words

IAS — Indicated Airspeed. The number on the glass. Honest about nothing except what the instrument itself sensed.

CAS — Calibrated Airspeed. IAS after the aircraft's own errors are removed: instrument error (the mechanism is imperfect) and pressure or position error (the static port cannot find perfectly undisturbed air anywhere on an aeroplane). Both come off one correction card beside the instrument. Older documents call this RAS — Rectified Airspeed. Same thing.

EAS — Equivalent Airspeed. CAS after allowing for the fact that air is springy and gets compressed at the pitot at high speed. As a line pilot you will almost never use it. It is examinable, so you must know what it is.

TAS — True Airspeed. Your genuine speed through the air mass. This is what navigation runs on, and it is the only one of the four that is a real speed.

What the examiner is really asking

The order is the answer to half the questions in this topic. IAS → CAS → (EAS) → TAS, never any other sequence. A question that offers you "correct for density, then instrument error" is offering you a wrong order and seeing whether you notice.

And the number that decides whether EAS appears at all is 300 knots TAS — not 300 CAS, not 300 IAS. You have to calculate before you know which path you were on.

2 · Density error — why TAS beats CAS

The airspeed indicator is calibrated for one specific air density: 1225 grams per cubic metre, which is the ISA value at mean sea level. At that density, and only at that density, CAS and TAS are the same number.

Climb, and the air thins. To ram the same pressure into the pitot tube — to keep the same CAS on the dial — you must move faster through that thinner air. The dial does not know this. Your navigation does.

CAS = TAS × √(relative density)
rearranged:   TAS = CAS ÷ √(relative density)  ·  relative density = actual density ÷ 1225 g/m³
True airspeed against altitude at a constant calibrated airspeed of 200 knots At sea level TAS equals CAS at 200 knots. TAS then climbs steadily with altitude: 232 knots at 10,000 feet, 271 at 20,000, 319 at 30,000 and 386 at 40,000 feet — roughly two per cent more true airspeed for every thousand feet climbed. The curve is the compressible relation, not CAS divided by the square root of the density ratio. 200 250 300 350 400 0 10 20 30 40 200 232 271 319 386 pressure altitude — thousands of feet knots
Figure 6.2 — Hold CAS at 200 knots and climb. The dial never moves; your true speed through the air grows by roughly 2% for every 1,000 feet. At FL400 it is 386 knots — almost double what the instrument reads. The curve is the compressible relation: past about FL200 this aeroplane is above Mach 0.45, and CAS ÷ √σ would draw it too fast — 17 knots too fast at the top of the climb.
The rule of thumb worth carrying

Add about 2% to CAS for every 1,000 feet of altitude. At 10,000 ft that is +20% — 200 CAS becomes about 240 TAS, and the exact answer is 232. At 20,000 ft, +40% predicts 280 against a true 271.

Know where it turns on you. Through the low and middle levels it reads a few knots high, which is the safe direction. Around FL300 it is very nearly exact — 320 against a true 319. Above that it goes the other way and runs low: at FL400 it predicts 360 against a true 386, and a rule of thumb that under-reads your true airspeed is no longer a conservative one.

Use it to catch a keying error in the levels you actually fly a light aircraft in. Never use it to file a flight plan, and do not carry it into the thirties.

Where the numbers come from — the ISA table

You cannot measure density in flight. There is no density gauge. But you have a thermometer and you have an altimeter, and the gas laws tie pressure, temperature and density together — know any two and the third is fixed.

Flight levelISA temp (°C)Pressure (hPa)ISA density (g/m³)Feet per hPa
FL000+151013.25122527
FL050+5843105632
FL100−569790537
FL150−1557277143
FL200−2546665351
FL250−3537654961
Read the last column again — it explains the whole chapter

At sea level it takes 27 feet of climb to lose one hectopascal. At FL250 it takes 61 feet. The higher you go, the more feet you must climb to shed the same pressure, because the air up there is thin.

That single fact drives density error, true altitude and density altitude. Everything else in this chapter is arithmetic hung off it.

Worked example 6.1 — the classic, done both ways

Problem. You are at FL200 with a CAS of 100 knots. The static air temperature is −25 °C — exactly ISA. What is your TAS?

Method 1 — the arithmetic
why the answer is what it is

1. Read the density at FL200 from the ISA table: 653 g/m³.

2. Relative density is that, compared with sea level:
653 ÷ 1225 = 0.5331

3. Take the square root:
√0.5331 = 0.7301

4. Divide CAS by it:
100 ÷ 0.7301

TAS = 137 knots

Method 2 — the CX-3
what you will actually do in the exam
  1. Press FLT, scroll to Airspeed, tap enter.
  2. Select Planned TAS.
  3. CAS: press 100, enter.
  4. OAT: set units to °C, press 25+/−, enter.
  5. PAlt: press 20000, enter.

TAS reads 137 kt

Which do you use? The CX-3, every time. The arithmetic is here so you understand what the box did — and so you can spot an answer that is obviously wrong. You will never be asked to look up a density in an exam.

Sanity check. FL200 is 20,000 feet, so the 2%-per-1,000 rule predicts +40%: about 140 knots. The answer is 137. Close enough to trust, far enough from 100 to prove the correction matters.

Worked example 6.2 — a real cruise, not a textbook one

Problem. Pressure altitude 18,000 feet, corrected outside air temperature −30 °C, CAS 170 knots. Find TAS.

Method 1 — the arithmetic
the mental estimate, in three seconds

1. 18,000 feet → add roughly 18 × 2% = 36%.

2. 170 × 1.36 = 231

3. The day is colder than ISA (ISA at 18,000 is about −21 °C, so this is ISA −9). Colder air is denser, so the true answer sits a little below the estimate.

expect about 220–230 kt

Method 2 — the CX-3
three entries, one reading
  1. FLT → Airspeed → Planned TAS.
  2. CAS: 170, enter.
  3. OAT: 30+/−, enter.
  4. PAlt: 18000, enter.

TAS reads 220 kt

Notice what Method 1 bought you. It did not give the answer. It gave you a range, and the confidence to reject 22.0 or 2,200 the instant the screen showed it. That is its whole job.

Watch the temperature sign. −30 is entered as 30 then the +/− key — digits first, sign afterwards. Enter +30 by mistake and the CX-3 returns 247 knots with complete confidence.

3 · Compressibility — the correction you will never make

The concept — and it is examinable in full

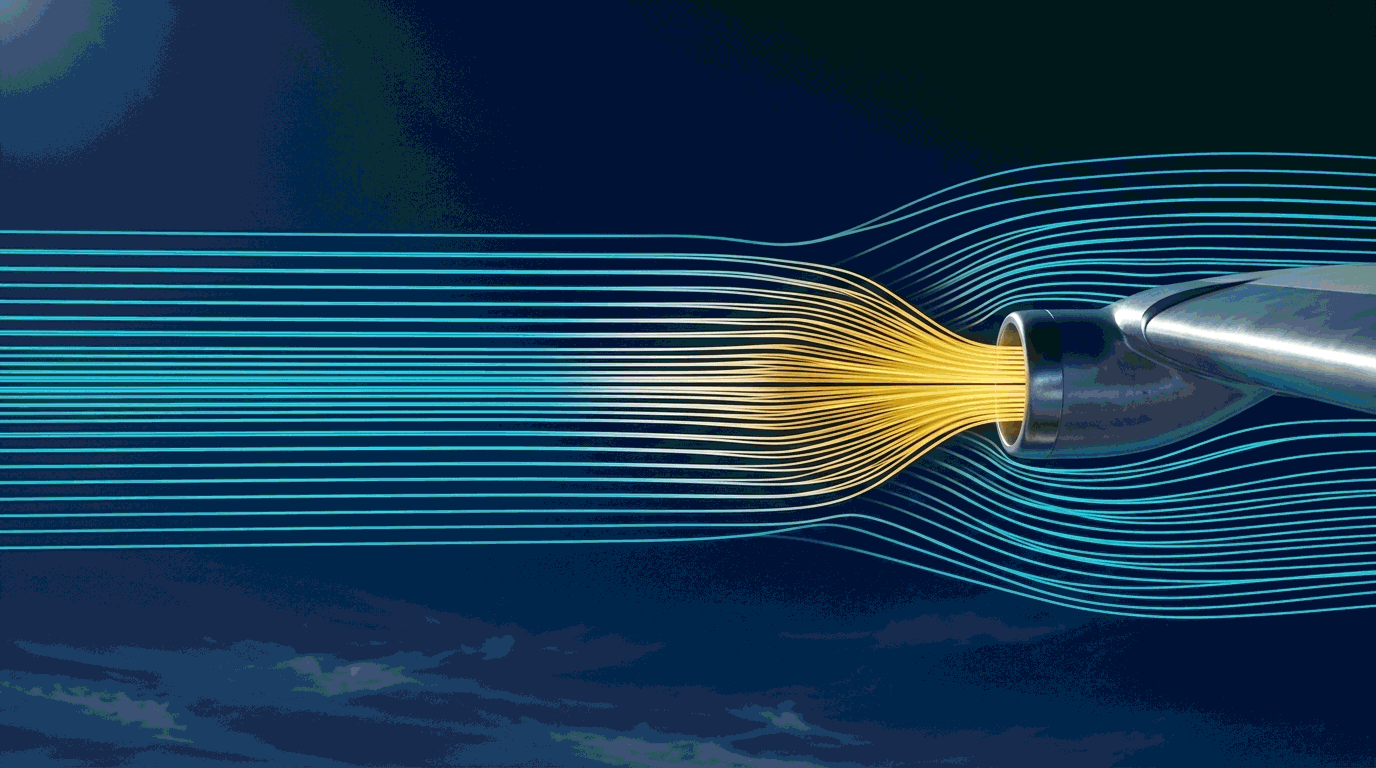

Cyan airflow streamlines compressing into a dense gold wedge at the mouth of a pitot tube on a wing leading edge at high speed.
calm air, evenly spaced
piled up — the tube senses more pressure than the speed justifies

Air is springy. At low speed it flows politely around the pitot tube and the instrument's assumptions hold. At high speed the air cannot get out of the way fast enough: it piles up and compresses at the tube's mouth, the pressure sensed is higher than the airflow really justifies, and the ASI over-reads.

The instrument is calibrated to allow for compressibility at ISA sea level. At any other density — which is to say, nearly always — that allowance is wrong.

Correcting CAS for compressibility gives Equivalent Airspeed (EAS). Below about 300 knots TAS the correction is small enough to ignore entirely.

Divergence between the compressible and simple airspeed calculations at flight level 350 Two curves of true airspeed against calibrated airspeed at FL350. Below 300 knots true airspeed the two agree within a few knots. Above it they separate rapidly: at CAS 280 the simple calculation over-reads by 30 knots, and at CAS 340 by 49 knots. 200300400500600100140180220260300340300 kt TAS — below this line the gap is noise 30 kt49 kt Why the cut-off is 300 knots simple density calculation — over-reads what the CX-3 actually computes calibrated airspeed at FL350 — knots true airspeed — knots
Figure 6.3 — Why the cut-off sits at 300 knots. The gold curve is the honest, compressible answer. The dashed red is what you get if you ignore compressibility. Below 300 kt TAS they are within a few knots of each other. Above it, the error runs away — 30 knots at CAS 280, nearly 50 at CAS 340.
compressible — the true answer simple density calculation — over-reads the error you would carry
And here is the good news — the CX-3 has already done it

The old disc needed two steps: read a TAS, then slide a separate compressibility index and read a corrected TAS. The CX-3 needs one.

Its Airspeed function does not use the simple density relationship. It solves the full compressible equation internally, so the TAS it hands you is already correct at any speed. There is no compressibility field, no second step, and no menu to hunt for.

You will never apply a compressibility correction on this machine. If a question hands you one, it is testing whether you know that.

The evidence, because this is a strong claim

The CX-3 User's Guide never uses the words "compressibility" or "EAS" — a search of all 24 pages returns nothing. That alone would only prove the manual is silent.

What settles it is the answer key to this chapter. Three of its ten TAS problems come out above 300 knots, where the source applies a manual compressibility correction on the disc. Running those same three through the compressible equation reproduces the book's corrected answers to within about 2 knots — while the simple density calculation misses them by 23, 24 and 27 knots.

QuestionSimple density calcCompressible calcBook's corrected answer
CAS 300 · 30,000 ft · −40 °C495470472
CAS 295 · 31,000 ft · −53 °C484459460
CAS 260 · 35,000 ft · −45 °C477452450

That is evidence about the book, though — it shows the compressible answers are the right ones, not that this particular machine produces them. So here is the evidence about the machine itself.

The Guide prints its own worked examples to two decimal places. Take the one it calls Required CAS: TAS 150 kt, OAT 41 °F, pressure altitude 6,500 ft. The Guide states the machine answers 135.58 KTS. Work that backwards by both methods:

MethodGivesAgainst the Guide's 135.58
Simple density — CAS = TAS × √σ 135.39 ktout by 0.19
Compressible — TAS → Mach → qc → CAS 135.58 ktexact

The two methods are 0.19 knots apart at that speed and the Guide prints two decimals, so the answer can tell them apart — and it lands on the compressible one, to the last digit. The Guide's Actual TAS example does the same thing in the opposite direction: CAS 150 MPH, TAT +10 °C, 6,500 ft, answer 166.64 MPH. Compressible gives 166.64; simple density gives 166.86.

And one more tell. That second example also reports OAT 7 °C from a TAT of +10. Recovering the ram rise from those two numbers gives the full compressible relation at a recovery factor of 1.0 — the same physics, inside the same function. A machine that ignored compressibility in the airspeed chain would not be using it for the temperature.

Why this passage exists, and what it still does not prove. Reviewers have challenged this claim more than once, and the honest answer is that the first version of this chapter asserted it without showing anything about the machine at all. The numbers above are from the CX-3 User's Guide V1.3 and you can rerun them yourself. What remains unproved is the behaviour at high Mach: every airspeed example the Guide prints sits near Mach 0.23. So this is the compressible relation confirmed at low speed and assumed to continue. One CAS-to-TAS run at Mach 0.8 on a physical unit would close that gap for good.

The two-step disc procedure existed to patch the disc's own geometry. Teach the theory in full — and teach that the procedure has gone.

4 · TAS from Mach number — the easiest sum in the syllabus

Mach number is your speed compared with the speed of sound in the air you are flying through right now. And the speed of sound depends on exactly one thing: temperature.

Not pressure. Not altitude. Not density. Temperature alone. Which is why this calculation has one input where the CAS route had three.

TAS = Mach × 38.95 × √(T in kelvin)
T in kelvin = SAT in °C + 273  ·  no pressure altitude, no density, no compressibility step
Where 38.95 comes from — so it is not a magic number

The speed of sound at ISA sea level is 661.5 knots, and ISA sea level is 288 K. Divide one by the square root of the other: 661.5 ÷ √288 = 38.98. The constant is conventionally written as 38.95, which is the same relationship carried to the precision the exam works to.

So the formula is really just: the speed of sound today, times your fraction of it.

Worked example 6.3 — Mach 0.82 in the cruise

Problem. Corrected outside air temperature −47 °C, Mach number 0.82. What is the TAS?

Method 1 — the arithmetic
genuinely faster than the box here

1. Convert to kelvin:
273 − 47 = 226 K

2. Square root:
√226 = 15.03

3. Multiply through:
0.82 × 38.95 × 15.03

TAS = 480 knots

Method 2 — the CX-3
two entries only
  1. FLT → Airspeed → Planned MACH#.
  2. MACH: press .82, enter.
  3. OAT: press 47+/−, enter.
  4. Read TAS. TAT also appears — useful as a cross-check against the probe.

TAS reads 480 kt

This is the one place the formula genuinely competes. Three keystrokes on a calculator against navigating two menu levels. Under exam time pressure, either is fine — but you should be able to do this one in your head to within ten knots.

Sanity check. At around −50 °C the speed of sound is close to 585 knots. Eight-tenths of 585 is about 470. The answer is 480. Right neighbourhood.

Where students lose the mark

Two traps, both about temperature.

First: the formula wants kelvin, and kelvin is never negative. If you find yourself taking the square root of a negative number you have skipped the +273.

Second: it wants SAT, the real air temperature — not TAT, which is what the probe reads. At Mach 0.82 the ram rise is roughly 30 °C. Feed TAT into this formula and you will be about 30 knots fast, with a completely plausible-looking answer.

5 · True altitude — the one that can hurt you

An airliner on approach at dusk over snow-covered ridgelines, the nearest crest close beneath its flight path in freezing winter air.
the altimeter reads the cleared altitude
you are lower than it says
This is a terrain-clearance calculation, not a bookkeeping one

Everything else in this chapter affects your flight plan. This one affects whether you clear the ridge.

Your altimeter is a barometer with a scale printed in feet. It converts pressure to height using the ISA relationship — the standard day. When the real atmosphere is colder than standard, the air is denser, pressure falls away faster with height, and you reach the "3,000-foot pressure" sooner than you should.

So the needle says 3,000 and you are lower. Cold means low.

Indicated against true altitude on a cold day On a standard day an indicated 20,000 feet is a true 20,000 feet. On a day that is 10 degrees colder than standard, the same indicated 20,000 feet is a true 19,200 feet — the aircraft sits 800 feet lower than the altimeter reports, and that margin is lost from terrain clearance. high ground 20 000 19 200 0 STANDARD DAY altimeter 20 000 · you are at 20 000 what the altimeter claims — 20 000 ISA −10 DAY you are actually at 19 200 800 ft 800 feet you thought you had, and do not
Figure 6.4 — Same altimeter reading, same setting, two different days. The cold day puts you 800 feet lower than the instrument reports — and the instrument never indicates that anything is wrong.
standard day — indicated equals true cold day — true altitude is lower
The CX-3 stops here — one of the module’s gaps

The CX-3's Altitude function outputs pressure altitude and density altitude. True altitude is not among them, and the words do not appear anywhere in its User's Guide.

This one is yours to calculate. It is also the one most worth being able to do without any instrument at all.

True Alt = Indicated Alt + ( ISA Deviation ÷ 273 × Indicated Alt )
and the field version, near enough for a mental check:   4 feet per 1,000 feet, per degree of deviation
Getting ISA deviation right — do this first, every time

ISA temperature = 15 − 2 × (altitude in thousands of feet)

At 20,000 feet: 15 − 40 = −25 °C. If the actual SAT is −35, the deviation is −35 − (−25) = ISA −10.

The strict lapse rate is 1.98 °C per 1,000 ft. Using 2 costs you a fraction of a degree and saves you an error under pressure.

Worked example 6.4 — the cold cruise

Problem. Indicated altitude 20,000 feet. SAT −35 °C. What is your true altitude?

Method 1 — the formula
the only route — there is no CX-3 function

1. ISA temp at 20,000 ft:
15 − (2 × 20) = −25 °C

2. Deviation:
−35 − (−25) = ISA −10

3. Apply 4 ft per 1,000 ft per degree:
−10 × 4 × 20 = −800 ft

4. 20,000 − 800

True altitude = 19 200 ft

Method 2 — the CX-3
supporting role only

There is no true-altitude function. The machine can still help with two of the four steps:

  1. FLT → Standard Atmosphere: enter Alt 20 000 to read the ISA OAT instead of working it out — that is step 1 done.
  2. CALC for the multiplication in step 3.

the subtraction is yours

Why the sign is the whole question. Cold is minus. Warm is plus. Get that backwards and you will report 19,200 as 20,800 — and on an approach you will believe you have 1,600 feet of margin you do not have.

Sanity check, and make it a reflex. The day is colder than standard, so true altitude must be the smaller number. 19,200 < 20,000. If your answer came out above the indicated altitude on a cold day, you added when you should have subtracted — go back.

What this looks like at 3,000 feet, which is where it matters

The scenario at the top of this chapter: 3,000 feet indicated, OAT −25 °C.

ISA at 3,000 ft is 15 − 6 = +9 °C. So −25 is ISA −34. Applying the rule: −34 × 4 × 3 = −408 feet.

You are at roughly 2,590 feet with 3,000 on the dial. On a non-precision approach into terrain, that is most of your margin gone — and every aircraft on the same approach in the same air has the same error, so nobody is going to warn you.

This is why cold-temperature altimeter corrections exist. The arithmetic you just learned is the reason behind the table in the AIP.

6 · Density altitude — the one about performance

It is not a height. Say that to yourself twice.
A light twin still on the ground far down a long runway at a hot high-altitude aerodrome, heat shimmer distorting the surface and the mountains beyond.
same aerodrome, same weight
the air thinks it is 4,000 feet higher

Density altitude has nothing to do with vertical distance. You cannot fly to it and it will not appear on any altimeter.

It is this: the altitude in the standard atmosphere at which the air would be as thin as the air you are actually sitting in. It is a way of saying "my engine and my wing think they are at 9,000 feet today" when the aerodrome is at 5,500.

It drives takeoff run, climb rate and engine power. Most performance charts build it into their entering arguments; when yours does not, you calculate it.

Density altitude on a hot day at a high aerodrome An aerodrome sits at 5,500 feet pressure altitude. On a standard day the aircraft performs as though at 5,500 feet. At 35 degrees Celsius — 31 degrees warmer than standard — the air is as thin as it would be at 9,220 feet, so the aircraft performs as though nearly 4,000 feet higher, with a longer takeoff run and a poorer climb. 9 220 5 500 0 aerodrome — 5 500 ft pressure altitude standard day, +4°C healthy climb the air here is as thin as 9 220 ft same aerodrome, same 5 500 ft hot day, +35°C flat 3 720 ft penalty The aeroplane never left 5 500 feet. Its performance did.
Figure 6.5 — Hot and high. The aerodrome does not move; the air does. At +35 °C this 5,500-foot aerodrome performs like a 9,220-foot one — longer roll, flatter climb, less power.
standard day performance hot day — density altitude penalty
Density Alt = Pressure Alt + ( ISA Deviation × 120 )
120 feet per degree. The strict factor is 118.8 — 120 is close enough and far easier under pressure.

Worked example 6.5 — a hot afternoon at a high aerodrome

Problem. Pressure altitude 5,500 feet. SAT +35 °C. What is the density altitude?

Method 1 — the arithmetic
three steps, no instrument

1. ISA temp at 5,500 ft:
15 − (2 × 5.5) = +4 °C

2. Deviation:
+35 − (+4) = ISA +31

3. Apply 120 ft per degree:
31 × 120 = +3 720 ft

4. 5 500 + 3 720

Density altitude = 9 220 ft

Method 2 — the CX-3
this one it does natively
  1. FLT → Altitude → Density Altitude.
  2. IAlt: 5500, enter.
  3. Baro: set 1013 — with standard pressure set, indicated is pressure altitude.
  4. OAT: 35, enter.
  5. Read DAlt — and PAlt appears alongside it.

DAlt reads about 9 200 ft

Expect the two to differ by a hundred feet or so. The 120-foot rule is a straight-line approximation of a curve; the machine solves it properly. Neither is "wrong" — and on a multiple-choice paper the options are almost never spaced that finely. Use the CX-3, and keep the formula as the check that you entered the right numbers.

Sanity check. The day is hot, so density altitude must be higher than pressure altitude. 9,220 > 5,500. On a cold day it goes the other way — and a density altitude below the aerodrome elevation is perfectly normal in winter.

The old instrument was genuinely bad at this one

The source text admits it plainly: the disc's density-altitude window has divisions so small that it "can sometimes be difficult to separate closely spaced examination answer options."

Look at the answer key on this chapter's fourth grid — the book prints two columns, a nav-computer answer and a formula answer, and they disagree by up to 700 feet. That is not a teaching device. That is an instrument failing to resolve the question.

The CX-3 has no window and nothing to squint at. It returns a number. This is the single clearest upgrade in the whole module.

7 · Which route do I take?

Four calculations, and they are easy to confuse under time pressure because three of them involve altitude and a temperature. This is how you tell them apart in one look.

Decision chart for the four Chapter 6 calculations Start by asking what the question wants. If it wants a speed, and gives Mach, use Airspeed Planned MACH. If it wants a speed from CAS, use Airspeed Planned TAS, which handles compressibility itself. If it wants a height for terrain clearance, that is true altitude and there is no CX-3 function — use the formula. If it wants a height for performance, that is density altitude and the CX-3 Altitude function does it. What is the question asking for? a SPEED a HEIGHT given Mach given CAS TAS from Mach Airspeed → Planned MACH# needs temperature only TAS from CAS Airspeed → Planned TAS compressibility handled inside for terrain for performance TRUE ALTITUDE no CX-3 function formula — 4 ft / 1000 / degree Density altitude Altitude → DAlt check with ×120 The tell, when two of them look alike True altitude and density altitude both take an altitude and a temperature and give you a height. Ask what the answer is for: clearing the ground, or predicting the climb. Two sign checks that catch almost every error in this chapter COLD day → true altitude is LOWER than indicated. You have less clearance, not more. HOT day → density altitude is HIGHER than pressure altitude. You have less performance. Both bad conditions push the number the way that costs you something. That is how you remember them.
Figure 6.6 — Four calculations, two questions. What is being asked for, and what is it for? Everything else follows.
The mnemonic that actually works

Bad weather always takes something away from you.

Cold takes away your terrain clearance — true altitude drops below indicated. Heat takes away your performance — density altitude climbs above pressure altitude.

If your answer gives you something extra on a bad day, you have a sign error.

Questions

Four grids. Work every row. Answers follow the last table — do not read ahead.

Q1 · TAS from CAS

#CAS (kt)Pressure altitude (ft)SAT (°C)TAS (kt)
114010,000-10
21758,000+5
322015,000-22
430030,000-40
518012,500-25
61659,000+7
716311,000+10
829531,000-53
916012,000-10
1026035,000-45

Q2 · TAS from Mach number

#Mach No.SAT (°C)TAS (kt)
1.82−50
2.66375
3−38425
4.77−60
5.92580
6−47415

Q3 · True altitude

#Indicated altitude (ft)SAT (°C)True altitude (ft)
110,000-20
218,000-30
36,000+10
427,000-50
521,500-35
68,000+10

Q4 · Density altitude

#Pressure altitude (ft)SAT (°C)Density altitude (ft)
110,000+15
26,000+20
327,000-40
423,000-22
525,000-45
629,000-38

Answers

How these were produced

Every TAS below was computed from the full compressible relation — the same one the CX-3 solves internally — not read off a disc. Every altitude came from the stated formula. Every row differs from the older printed key by one to three knots, because that key predates the compressible method the CX-3 uses. The difference is explained underneath, once, rather than marked on thirty separate rows.

A1 · TAS from CAS

The method is the same for all ten rows. Full walkthrough for the first two; after that the entries never change, only the numbers.

Row 1 in full. CAS 140, pressure altitude 10,000 ft, SAT −10 °C.

Method 1 — the estimate

10,000 ft → roughly +20%

140 × 1.20 = 168

ISA at 10,000 is −5, so −10 is ISA −5 — denser air, expect a shade less.

expect about 160–168

Method 2 — the CX-3
  1. FLT → Airspeed → Planned TAS
  2. CAS 140
  3. OAT 10+/−
  4. PAlt 10000

TAS 161 kt

Row 4 in full — and this one goes above 300 knots. CAS 300, 30,000 ft, SAT −40 °C.

Method 1 — the estimate

30,000 ft → roughly +60%

300 × 1.60 = 480

Well above 300 kt, so on the old disc this is where you would stop and apply a second correction.

expect 460–480

Method 2 — the CX-3
  1. Same three entries as row 1.
  2. Read TAS. Stop there.
  3. No compressibility step. The machine has already done it.

TAS 470 kt · MACH 0.79

This is the row that proves the point. Without compressibility the answer would be 495. With it, 470. The CX-3 gives 470 in one step; the disc needed two and landed on 472.

Rows 2, 3 and 5–10 are the identical three entries. Enter CAS, OAT and PAlt; read TAS.

#CAS (kt)Pressure altitude (ft)SAT (°C)TAS (kt)
114010,000-10161
21758,000+5199
322015,000-22271
430030,000-40470 (M 0.79 — above 300 kt)
518012,500-25210
61659,000+7192
716311,000+10198
829531,000-53459 (M 0.79 — above 300 kt)
916012,000-10191
1026035,000-45452 (M 0.77 — above 300 kt)
Three rows crossed 300 knots — and you did nothing differently

Rows 4, 8 and 10 all come out above 300 kt TAS. On the old instrument each would have needed a second, separate correction. On the CX-3 all ten rows are the same three keystrokes. That is the entire practical content of the compressibility topic.

A2 · TAS from Mach number

Row 3 in full — working backwards. SAT −38 °C, TAS 425 kt. Find the Mach number.

Method 1 — rearrange the formula

273 − 38 = 235 K

√235 = 15.33

38.95 × 15.33 = 597 kt — that is the speed of sound today

425 ÷ 597

Mach 0.71

Method 2 — the CX-3
  1. FLT → Airspeed → Planned MACH#
  2. Enter OAT 38+/−
  3. Enter TAS 425
  4. Read MACH — any two fields give the third.

MACH 0.71

Worth seeing once. The middle line of Method 1 is the local speed of sound. Every Mach problem is really just "what fraction of 597 knots am I doing today?"

#Mach No.SAT (°C)TAS (kt)
10.82-50477
20.66-60375
30.71-38425
40.77-60438
50.92-11580
60.71-47415

A3 · True altitude

Four steps, every row, in this order: ISA temperature at that altitude → deviation → correction → apply it. The deviation column below is shown so you can check your working, not just your answer.

Which of the two formulas this table uses — read this before you mark yourself wrong

Section 5 gave you two: the exact one, TA = IA + (dev ÷ 273 × IA), and the field version, 4 ft per 1,000 ft per degree.

Every answer below is the exact formula, rounded to the nearest ten feet. The field rule over-corrects slightly by design — 4·0 ft per 1,000 per degree where the exact factor is 1,000 ÷ 273 = 3·66 — so it pushes the correction further in whichever direction the day is going. On these six rows the two methods sit between 18 and 98 feet apart: the field rule reads lower on the four cold rows and higher on the two warm ones.

If your figures come out a few tens of feet either side of the table, you used the field rule and you are not wrong. Note which way it errs, though: on a cold day it is conservative, and on a hot day it is not.

Row 1 in full. Indicated 10,000 ft, SAT −20 °C.

Method 1 — the formula

1. ISA at 10,000: 15 − 20 = −5 °C

2. Deviation: −20 − (−5) = ISA −15

3. Correction, exact formula:
−15 ÷ 273 × 10,000 = −549 ft

4. 10,000 − 549

9 450 ft

Field check. −15 × 4 × 10 = −600, giving 9,400. Fifty feet apart, and the mental version is the lower of the two. That is the whole difference between the formulas, and on a cold day it errs the right way.

Method 2 — the CX-3

No true-altitude function. Use it for step 1 only:

  1. FLT → Standard Atmosphere
  2. Alt 10000
  3. Read ISA OAT — saves the mental arithmetic
  4. CALC for the rest

the formula owns this one

Cold day, so the answer must come out below 10,000. It does.

#Indicated (ft)SAT (°C)ISA tempDeviationTrue altitude (ft)
110,000-20-5ISA -159,450
218,000-30-21ISA -917,410
36,000+10+3ISA +76,150
427,000-50-39ISA -1125,910book prints 25,600
521,500-35-28ISA -720,950book prints 20,800
68,000+10-1ISA +118,320
Two rows where an older answer key disagrees

Rows 4 and 5 are marked above. Working row 4: ISA at 27,000 is −39, so −50 is ISA −11. The exact formula gives −11 ÷ 273 × 27,000 = −1,088 and a true altitude of 25,910 ft; the field rule gives −11 × 4 × 27 = −1,188 and 25,810 ft. Both are a long way from the 25,600 the older key prints — that figure would need a deviation of about ISA −14, and the day is not that cold.

Those keys were read off a sliding disc. Trust the four steps. They are reproducible, they are exact, and they are the same four steps you will use on an approach chart at three in the morning.

A4 · Density altitude

Row 3 in full — and it goes the other way. Pressure altitude 27,000 ft, SAT −40 °C.

Method 1 — the formula

1. ISA at 27,000: 15 − 54 = −39 °C

2. Deviation: −40 − (−39) = ISA −1

3. −1 × 120 = −120 ft

4. 27,000 − 120

26 880 ft

Method 2 — the CX-3
  1. FLT → Altitude → Density Altitude
  2. IAlt 27000
  3. Baro 1013
  4. OAT 40+/−

DAlt just below 27 000

Barely colder than standard, so barely any change. A deviation of one degree moves density altitude by 120 feet and no more. If you got thousands of feet here, you subtracted the temperatures the wrong way round.

#Pressure alt (ft)SAT (°C)ISA tempDeviationFormula (ft)Old disc printed
110,000+15-5ISA +2012,40012,500
26,000+20+3ISA +178,0408,200
327,000-40-39ISA -126,88026,300
423,000-22-31ISA +924,08023,600
525,000-45-35ISA -1023,80023,100
629,000-38-43ISA +529,60028,900
Look at that last column before you move on

The right-hand column is what the old answer key read off the disc's density window. Compare it with the formula column: the two disagree by 100 to 700 feet, in the same book, for the same questions.

That is not a rounding argument. That is an instrument that could not resolve the question being asked of it — and the source says so itself.

Use the CX-3's reading, and check it with ×120. If those two agree to within a couple of hundred feet, you have entered the right numbers.

90-second speed drill

CX-3 and calculator on the desk. 90 seconds. Ten answers. Go.

  1. CAS 150, pressure altitude 8,000 ft, SAT 0 °C. TAS?
  2. What are the four airspeeds, in the order they are corrected?
  3. Mach 0.78, SAT −55 °C. TAS?
  4. ISA temperature at 25,000 feet?
  5. Indicated 5,000 ft, SAT −10 °C. True altitude?
  6. Pressure altitude 3,000 ft, SAT +30 °C. Density altitude?
  7. Above what TAS does compressibility matter — and what do you do about it on a CX-3?
  8. CAS 200 at 15,000 ft: roughly what TAS, using the 2%-per-1,000 rule?
  9. Cold day. Is your true altitude above or below the indicated?
  10. Which of the four calculations has no CX-3 function at all?
Answers
  1. FLT → Airspeed → Planned TAS — 169 kt
  2. IAS → CAS → EAS → TAS (EAS only above 300 kt TAS)
  3. 0.78 × 38.95 × √218 = 449 kt
  4. 15 − 50 = −35 °C
  5. ISA at 5,000 is +5, so ISA −15. −15×4×5 = −300. 4,700 ft
  6. ISA at 3,000 is +9, so ISA +21. 21×120 = +2,520. 5,520 ft
  7. 300 kt TAS — and nothing. The CX-3 has already applied it.
  8. +30% → about 260 kt (the exact answer is 250)
  9. Below. Cold means low.
  10. True altitude. Formula only.

Quick reference — Chapter 6

Photograph this page.

ProblemFormulaCX-3 route
TAS from CASTAS = CAS ÷ √(rel. density)CX-3 · FLT → Airspeed → Planned TAS
TAS from MachTAS = M × 38.95 × √T KEither · FLT → Airspeed → Planned MACH#
Compressibility above 300 kt—Nothing to do. Already inside Planned TAS
True altitudeTA = IA + (dev ÷ 273 × IA)
field rule: 4 ft / 1,000 ft / degree		Formula. No CX-3 function exists
Density altitudeDA = PA + (dev × 120)CX-3 · FLT → Altitude → DAlt
ISA temperature at a level15 − 2 × (alt ÷ 1,000)CX-3 · FLT → Standard Atmosphere
SAT from TATram rise ≈ SATK × 0.2 × M²
(≈ 30 °C at M 0.82, SAT −47)		CX-3 · FLT → Airspeed → Actual TAS
The six things to carry out of this chapter
  • IAS → CAS → EAS → TAS — always that order
  • TAS gains about 2% per 1,000 feet at constant CAS
  • 300 knots TAS is the compressibility line — and the CX-3 crosses it for you
  • ISA temp = 15 − 2 per thousand feet — every altitude problem starts here
  • Cold → true altitude LOWER. 4 ft per 1,000 ft per degree
  • Hot → density altitude HIGHER. 120 ft per degree

Chapter 6 — TAS and Altitude Conversions

Ghost Aviator · General Navigation · The Navigation Computer series

Next: Chapter 7 — The Triangle of Velocities, where the true airspeed you have just learned to find meets the wind, and becomes a speed over the ground.

Capt. Pankaj Pahil · www.GhostAviator.com
Study Navigation with other student pilots
Join the free Navigation group on Telegram. Stuck on a doubt? Type /q and your question, and get an answer from Ghost Aviator's notes.
Join the Navigation group →
LIVE BATCH
Study General Navigation live with the Captain
Small batch of 10 · live doubt-clearing · 4–6 weeks · ₹12,999 ₹7,999
Reserve a SeatAsk instantly on TelegramDetails
Previous
Ch.34: CX-3: Distance, Speed and Time
↑ All Chapters
Next
Ch.36: CX-3: Triangle of Velocities

Reinforce Chapter 35: CX-3: True Airspeed and Altitude

Test your knowledge and practice actual exam questions for Air Navigation.

Chapter QuizQuestion BankPast Papers
Planning your Pilot Training in 2026?
Calculate exact flying hours, DGCA exam fees, and living costs with our interactive calculator.
CPL Cost Calculator →
