Technical Specific · DA-42 NG (Austro Engine)

Chapter 1 — The Aircraft & Its Systems: A First Look

DGCA CPL Technical Specific notes — Capt. Pankaj Pahil

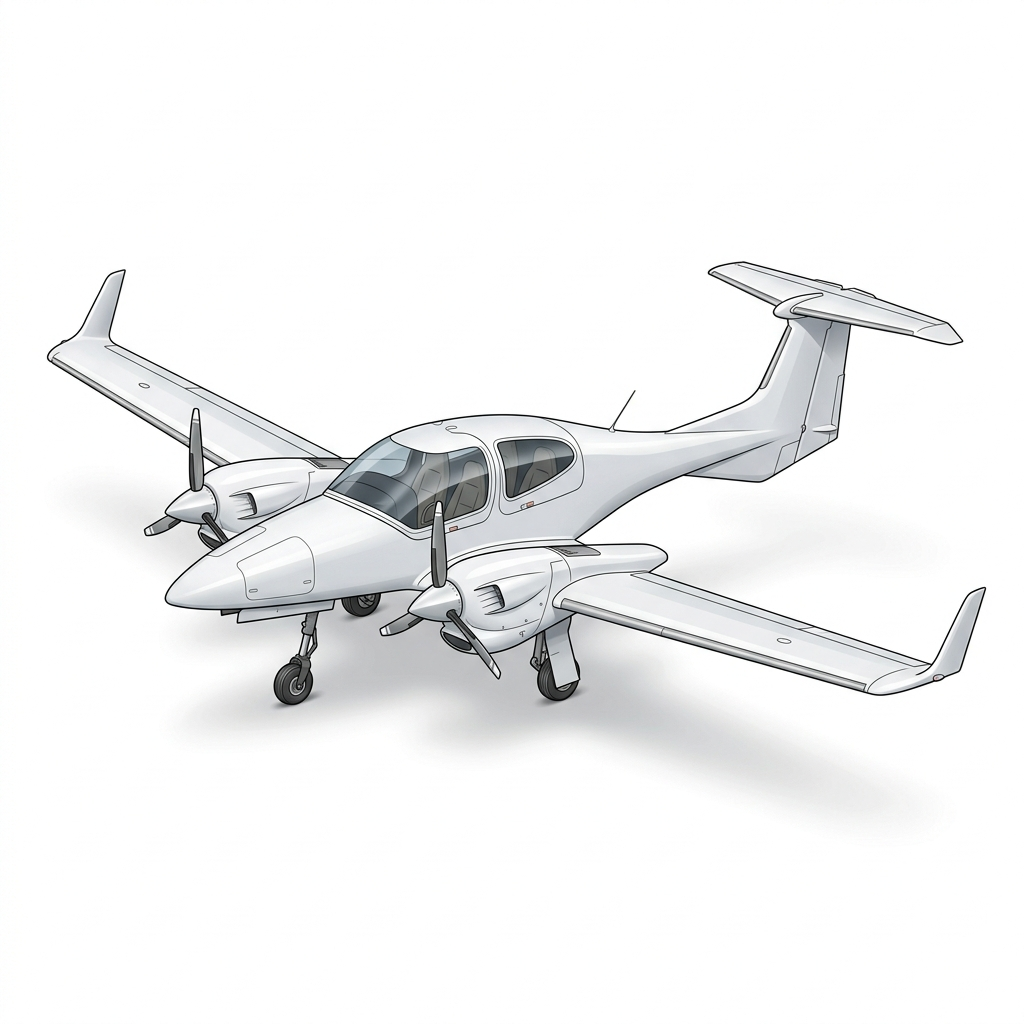

The DA-42 NG — a four-seat composite twin: low wing with upturned tips, two wing-mounted turbo-diesel engines, a T-tail, and a fully retractable tricycle undercarriage.

Before you ever push a power lever forward, you need to know the machine you are strapping into. This first chapter is your walk-around briefing for the DA-42 NG — what it is, what turns the propellers, and the handful of numbers the examiner expects to fall out of your mouth without you reaching for a manual. Learn this chapter well and the rest of the type-specific paper becomes a lot easier, because everything that follows hangs off this frame.

1.1 What kind of aeroplane is it?

The DA-42 NG is a four-seat, twin-engine light aircraft built largely from composite material — carbon and glass-fibre reinforced plastic rather than riveted aluminium. It sits on a fully retractable tricycle undercarriage and wears a T-tail, with the tailplane carried high on top of the fin, clear of the propeller wash and the wing wake.

Two things make it stand apart from the trainers most of you have flown up to now. First, it is a diesel twin — the engines burn jet fuel, not AVGAS, through compression ignition. Second, it is a glass cockpit aircraft from nose to tail, built around an integrated avionics suite rather than a panel full of separate steam gauges. Keep both of those in mind; they colour almost every system you are about to study.

Remember for the exam Twin-engine · four seats · composite airframe · retractable tricycle gear · T-tail · certified in the normal category under the JAR-23 code (plus its special-condition requirements). Minimum crew is one; the cabin takes a maximum of four occupants.

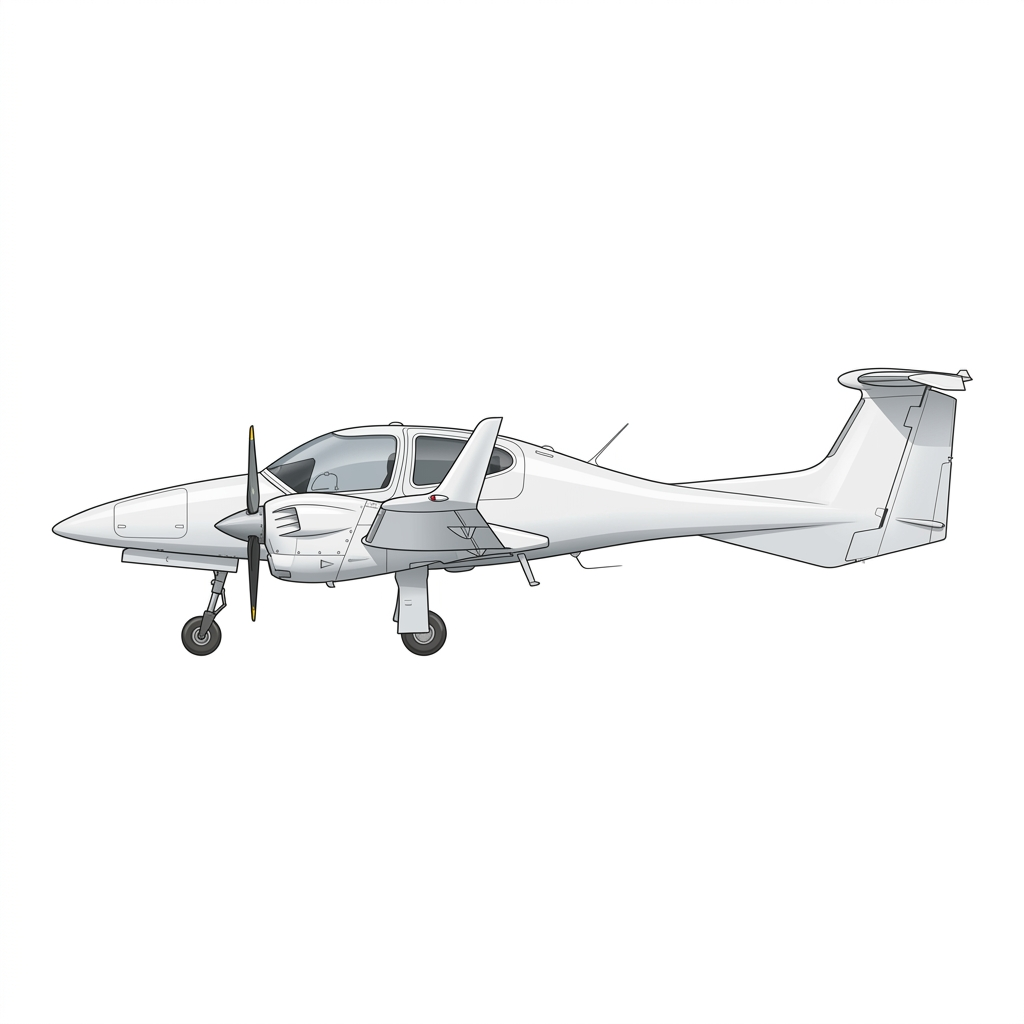

Side profile. Note the slender fuselage, the high T-tail carried clear of the propeller wash, and the diesel engine nacelles set on a low, high-aspect wing.

1.2 The shape of it — key dimensions

You do not need to memorise every figure on the drawing, but a few dimensions come up again and again — in performance planning, in parking and taxi judgement, and in the exam. Treat these as approximate working numbers.

DA-42 NG — principal dimensions
Dimension	Metric	Imperial
Wing span	13.42 m (13.55 m over the wingtip lights)	44 ft (44.5 ft)
Length	8.56 m	28 ft 1 in
Height	2.49 m	8 ft 2 in
Wing area	16.29 m²	175.3 sq ft
Aspect ratio	11.06 — a long, slender wing
Undercarriage track	2.95 m	9 ft 8 in
Wheelbase	1.735 m	5 ft 8 in

General arrangement — three-view schematic drawn to the aircraft's published dimensions. Not to scale.

Why it matters That aspect ratio of just over eleven is not trivia. A high-aspect-ratio wing gives low induced drag and an efficient glide and climb — exactly what you want on a diesel twin built for range and for holding height on one engine. When we get to performance, remember that this wing is working in your favour.

1.3 The powerplants

Hanging off each wing is an Austro Engine E4-B: a liquid-cooled, four-cylinder, four-stroke, turbocharged compression-ignition (diesel) engine with common-rail direct injection and an intercooler. It runs on Jet A-1, and it is managed not by cables and a mixture knob but by a digital Electronic Engine Control Unit — the EECU. You set a percentage of power on a single lever and the electronics take care of fuelling, boost and propeller pitch behind the scenes.

Between the engine and the propeller sits a reduction gearbox with a ratio of 1 : 1.69, so the propeller turns considerably slower than the crankshaft. The propeller itself is an MT three-blade, constant-speed, fully-feathering unit with wood-composite blades, controlled hydraulically through that same EECU.

Powerplant — headline figures per engine
Item	Figure
Engines	2 × Austro Engine E4-B (turbo-diesel, Jet A-1)
Max take-off power	100% ≈ 123.5 kW, limited to 5 minutes, at 2300 propeller RPM
Max continuous power	92% ≈ 114 kW, at 2100 propeller RPM
Propeller overspeed limit	2500 RPM, maximum 20 seconds
Reduction gear ratio	1 : 1.69
Propeller	3-blade, constant-speed, feathering (MT, wood-composite)

Watch the units Every RPM figure quoted for this aircraft is propeller RPM, not engine RPM — the gearbox means the two are different. Take-off power (2300 RPM) is a five-minute limit, and continuous power is 2100 RPM. Get comfortable with those two numbers now; they anchor the whole limitations chapter.

Feathering — and why it is designed in

On any twin, the single biggest threat is losing an engine. A windmilling dead propeller creates enormous drag and swings the aircraft towards the failed side. The DA-42 NG's propellers are feathering: the blades can be turned edge-on to the airflow so the dead propeller stops and stops fighting you. On this aircraft feathering happens as part of shutting the engine down with its master switch, and it is only available above roughly 1300 propeller RPM — a detail we will return to when we cover engine-out handling.

1.4 Fuel — what it burns and where it lives

Fuel is carried in an aluminium tank in each wing. In the standard fit each wing tank holds about 25.4 US gallons (96 litres) usable, with a small amount trapped as unusable — giving roughly 50 US gallons usable across the aeroplane. Some airframes carry an optional auxiliary tank in each engine nacelle adding about 13.7 US gallons a side, which is transferred into the main tanks by electric pumps in flight.

Normally the left engine feeds from the left tank and the right from the right. A crossfeed facility lets either engine draw from the opposite tank — useful for balancing fuel during a long single-engine flight — but there are firm rules about when you may and may not use it, which belong to the fuel-system chapter.

1.5 Avionics — the glass cockpit

The DA-42 NG is built around an integrated glass avionics suite. In front of the pilot is a Primary Flight Display presenting attitude, airspeed, altitude and heading in one picture; alongside it a Multi-Function Display carries the engine instruments, the moving map and the systems pages. The two screens are backed by a digital autopilot and flight director, and by a small independent standby instrument so you are never left blind if the main displays fail.

You do not need to be a Garmin systems engineer for the CPL paper, but you do need to know what each display shows, where the engine indications live, and which failures downgrade the autopilot. We build all of that up in the avionics chapter — for now, just fix the layout in your mind: PFD in front of you, MFD in the centre, standby instrument as your last line of defence.

1.6 The numbers to know cold

If you take nothing else from this chapter into the exam hall, take these. Every one of them is tested, and every one of them will reappear — properly explained — in the limitations chapter.

DA-42 NG — first-look reference figures
Item	Value
Maximum take-off mass (standard)	1900 kg (4189 lb)
Maximum landing mass (standard)	1805 kg (3979 lb)
Maximum zero-fuel mass (standard)	1765 kg (3891 lb)
V_NE — never exceed	188 KIAS
V_NO — max structural cruising	151 KIAS
V_YSE — best climb, one engine out (blue line)	85 KIAS
V_MCA — min control speed, airborne (red line)	76 KIAS
V_LE / V_LO extend — gear down / extending	188 KIAS
V_LO retract — gear retracting	152 KIAS
V_FE — flaps APP / LDG	133 / 113 KIAS

A word on the mass figures The standard maximum take-off mass is 1900 kg. You will see higher numbers — 1999 kg, 2001 kg — quoted for this type, but those apply only to airframes carrying a specific weight-increase modification. For the standard aeroplane, and unless a question tells you otherwise, work to 1900 kg.

Why it matters Notice that V_YSE (85 kt, the blue line) sits above V_MCA (76 kt, the red line). That gap is your safety margin on one engine — fly the blue line and you have both control and the best climb the aeroplane can give you. Let the speed decay towards the red line and you are trading away control authority. On a twin, that spread between blue and red is not a number to memorise and forget; it is the difference between a manageable engine failure and a loss of control.

1.7 Where we go from here

That is your orientation complete. You now know the airframe, the engines, the fuel, the cockpit, and the headline limits. From here each chapter takes one system and opens it up — the powerplant and its EECU, the fuel system and its crossfeed logic, the electrical system, the landing gear and brakes, the avionics, and then the limitations, normal drills and emergency handling that tie them all together. Study them in order. The aeroplane was designed as one integrated machine, and that is how you should learn it.
