A radio is, at heart, an electrical machine. Before you can understand how a transmitter pushes your voice 60 miles to a control tower, or why VHF behaves so differently from HF, you must be fluent in the quantities that describe all electricity — and the one equation that ties a circuit to a radio wavelength.
SYLLABUS MAP
Part II (i) Electrical units — volt, ampere, ohm, watt; wavelength, frequency & their relationship
Learning objectives — by the end of this chapter you will be able to…
Define voltage, current, resistance and power with their units and symbols.
Apply Ohm's Law and the power formulae, and solve numerical problems.
Distinguish AC from DC, and explain RMS, peak, frequency and period.
State the factors affecting resistance and combine resistors in series and parallel.
Explain capacitance, inductance and reactance, and why they matter for tuning.
Relate frequency, wavelength and the speed of radio waves and convert units.
7.1 The four quantities
7.2 Ohm's Law
7.3 Power
7.4 AC & DC
7.5 Resistance & materials
7.6 Series & parallel circuits
7.7 Capacitance, inductance & reactance
7.8 Frequency, period & wavelength
Understanding the core electrical principles is the first step to mastering radio transmission.
7.1 The four quantities
FIRST PRINCIPLES — THE WATER ANALOGY, MADE PRECISE

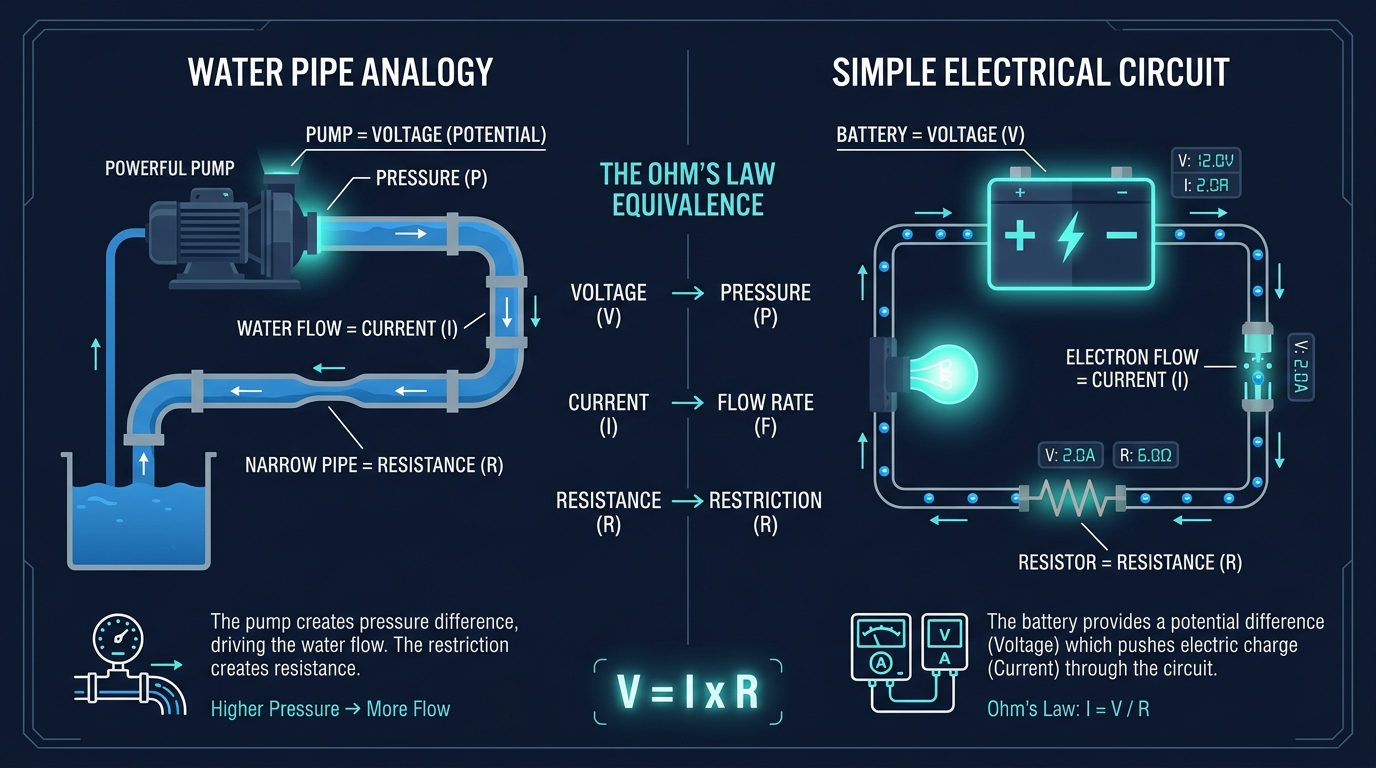

Picture electricity as water in a pipe. Voltage is the pressure pushing the water; current is how much water flows per second; resistance is how narrow the pipe is; power is the useful work the flow does. The analogy is exact enough to carry you through every formula in this chapter.
Voltage is the pump, Current is the flow, and Resistance is the pipe's narrow point.
Electrical Quantities
Quantity
Symbol
Unit
Precise meaning
Voltage (EMF / p.d.)
V (or E)
Volt (V)
Energy given to / taken from each coulomb of charge — the "push"
Current
I
Ampere (A)
Rate of flow of charge: 1 A = 1 coulomb per second
Resistance
R
Ohm (Ω)
Opposition to current flow
Power
P
Watt (W)
Rate of doing work / using energy: 1 W = 1 joule per second
EMF vs potential difference
EMF (electromotive force) is the voltage a source produces (e.g. a battery's 12 V). Potential difference (p.d.) is the voltage across a component in the circuit. They differ by the voltage lost across the source's own internal resistance when current flows.
7.2 Ohm's Law
THE ONE EQUATION TO KNOW COLD
Push harder (more volts) and more current flows; narrow the pipe (more ohms) and less flows. The three lock together:
V = I × R
Volts = Amps × Ohms · rearranged: I = V ÷ R and R = V ÷ I
Mnemonic — the VIR triangle
Draw a triangle: V on top, I and R below. Cover the one you want: cover V → I × R; cover I → V/R; cover R → V/I. "Very Important Rule."
Worked example — Ohm's Law
A 28 V aircraft bus supplies a 14 Ω heater. Current = V/R = 28 ÷ 14 = 2 A.
If the resistance halves to 7 Ω, current doubles to 4 A (inverse relationship). If the bus sags to 24 V across the original 14 Ω, current = 24 ÷ 14 ≈ 1.71 A.
7.3 Power
P = V × I = I²R = V² ÷ R
Watts = Volts × Amps · three forms, choose what you know
Worked example — power three ways
From 7.2: 28 V across 14 Ω drawing 2 A. P = V × I = 28 × 2 = 56 W.
Check with I²R = 2² × 14 = 4 × 14 = 56 W. Check with V²/R = 28² ÷ 14 = 784 ÷ 14 = 56 W. All agree.
Units & efficiency
1 kW = 1000 W. Efficiency = useful output power ÷ input power (always < 100% because some energy becomes heat). A transmitter rated 50 W output draws more than 50 W from the bus because the power amplifier is not perfectly efficient.
7.4 AC & DC
Direct vs Alternating Current
DC (Direct Current) flows in one direction at a steady value — e.g. a battery. AC (Alternating Current) reverses direction periodically, tracing a sine wave; the number of complete cycles per second is the frequency (hertz), and the time for one cycle is the period (T = 1/f). Every radio-frequency signal is alternating current.
Peak, peak-to-peak & RMS
An AC wave is described by its peak value, its peak-to-peak (twice peak), and its RMS (root-mean-square) — the equivalent DC value that would do the same heating work. For a sine wave: RMS = 0.707 × peak (and peak = 1.414 × RMS). Mains and aircraft AC voltages are quoted as RMS.
Cockpit reality — aircraft power
A typical aircraft has a 28 V DC system (battery/bus feeding avionics) and a 115 V AC at 400 Hz system (for many instruments and as the form every radio signal takes on the way to the antenna). 400 Hz is used rather than 50/60 Hz because transformers and motors can be smaller and lighter at the higher frequency — a real weight saving.
7.5 Resistance & materials
Material Types
Material type
Behaviour
Example
Conductor
Many free electrons — low resistance
Copper, aluminium, silver
Insulator
Almost no free electrons — very high resistance
PVC, rubber, glass, air
Semiconductor
In between; conductivity controllable — the basis of all radio electronics
Silicon, germanium (diodes, transistors)
What sets a conductor's resistance
Resistance increases with length, decreases with cross-sectional area (a thicker wire conducts better), depends on the material (its resistivity), and — for most metals — increases with temperature. Hence a long, thin, hot wire has the highest resistance.
7.6 Series & parallel circuits

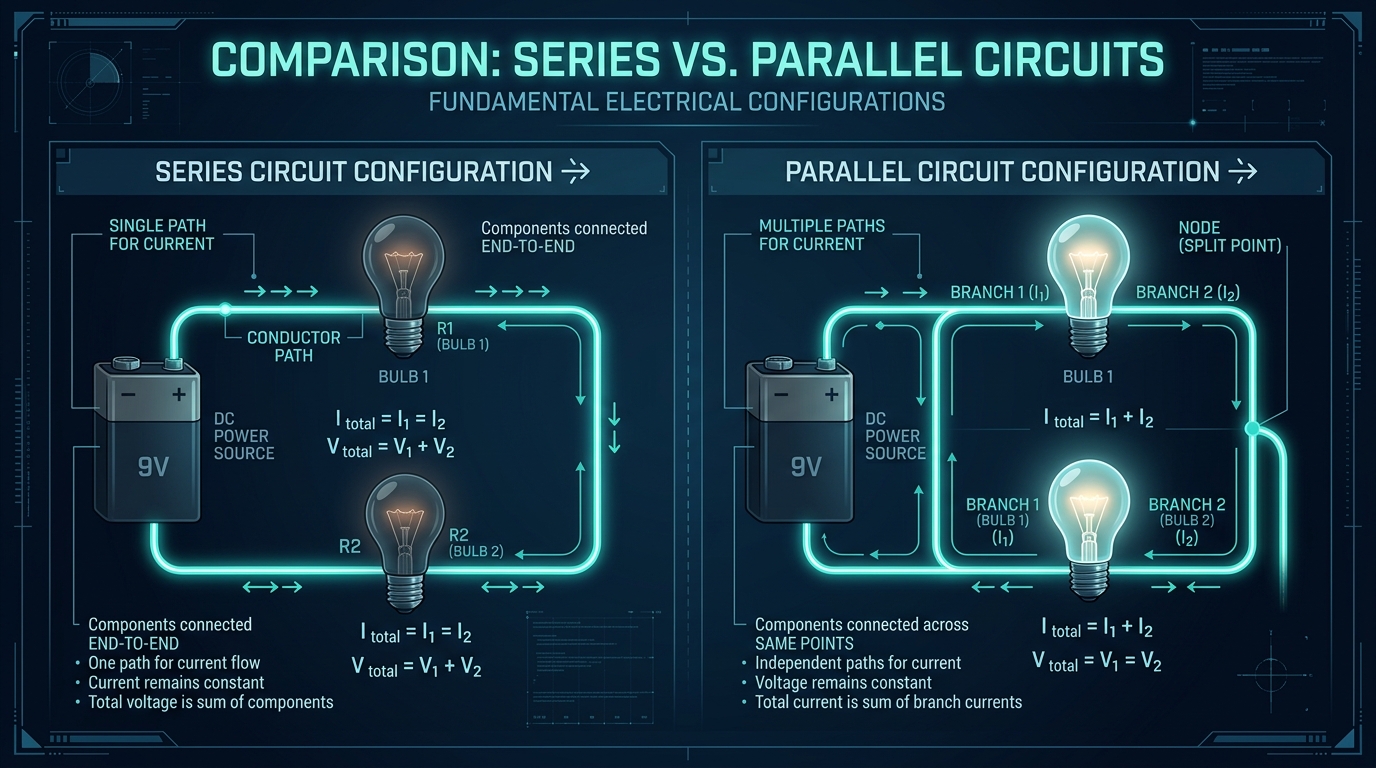

A series circuit has one single path; a parallel circuit offers multiple paths for current.
Circuit Comparisons
Series
Parallel
Path
One single loop
Multiple branches
Current
Same through every component
Splits between branches
Voltage
Divides across components
Same across each branch
Total resistance
R = R+ + R&sub2; + ... (adds up)
1/R = 1/R+ + 1/R&sub2; + ... (less than the smallest)
If one opens
Whole circuit stops
Other branches keep working
Worked example — combining resistors
Series: 10 Ω + 20 Ω = 30 Ω. Across 30 V the current = 30/30 = 1 A; the 10 Ω drops 10 V and the 20 Ω drops 20 V (voltage divides). Parallel: two 10 Ω resistors → 1/R = 1/10 + 1/10 = 2/10, so R = 5 Ω (half of one). For two equal resistors, parallel total = half the value; the current splits equally.
Mnemonic
Series = Same current; Parallel = same Pressure (voltage). Resistances add in series and reduce in parallel.
7.7 Capacitance, inductance & reactance
WHY A RADIO NEEDS MORE THAN RESISTORS
Resistors oppose current the same at any frequency. Capacitors and inductors oppose AC by an amount that depends on frequency — and that frequency dependence is exactly what lets a radio tune to one station and reject the rest.
The two reactive components
Capacitor — stores energy in an electric field; blocks DC, passes AC more easily as frequency rises (its reactance falls with frequency). Unit: farad (F). Inductor — stores energy in a magnetic field; passes DC, opposes AC more as frequency rises (its reactance rises with frequency). Unit: henry (H).
Their frequency-dependent opposition is called reactance (X), measured in ohms.
Resonance — the heart of tuning
Put an inductor and capacitor together and at one special resonant frequency their reactances cancel, giving a sharp peak in response. A tuned LC circuit selects that frequency and rejects others — this is how a receiver is "tuned" to a station and how a transmitter sets its operating frequency.
7.8 Frequency, period & wavelength
IN PLAIN TERMS
Every radio wave travels at the speed of light. Its frequency (cycles per second) and its wavelength (length of one cycle) are two views of the same wave — fix the speed and one decides the other.
c = f × λ
speed = frequency × wavelength · c = 3 × 10&sup8; m/s · so λ = c/f and f = 1/T
Unit conversions
1 kHz = 1,000 Hz · 1 MHz = 1,000,000 Hz · 1 GHz = 1,000 MHz. Period and frequency are reciprocals: a 1 MHz signal has a period of 1 microsecond.
Worked example — wavelength of aviation VHF
A 120 MHz VHF signal: λ = c/f = (3 × 10&sup8;) ÷ (120 × 10&sup6;) = 2.5 m.
A 300 MHz signal: λ = (3 × 10&sup8;) ÷ (300 × 10&sup6;) = 1 m. A 3 MHz HF signal: λ = (3 × 10&sup8;) ÷ (3 × 10&sup6;) = 100 m. Higher frequency → shorter wavelength.
Exam trap
Frequency and wavelength are inversely proportional: as frequency goes up, wavelength comes down. Mixing this round is the classic error, and it explains why high-frequency aerials are short and low-frequency aerials are long.

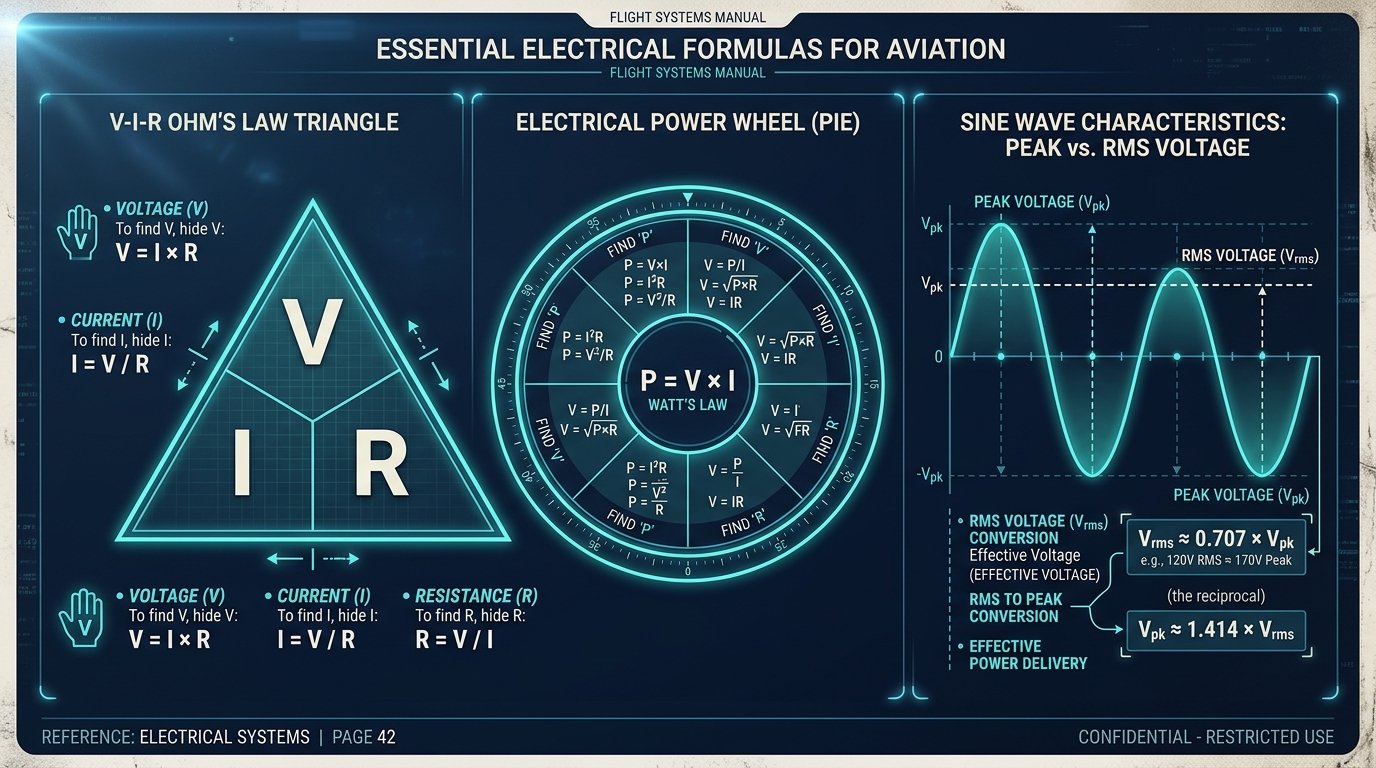

Figure 7.1 — Ohm's Law triangle · the power wheel · the sine wave.
☆ Numbers to memorise
Essential Facts for Chapter 7
Fact
Value
Units
Volt (V) · Ampere (A) · Ohm (Ω) · Watt (W) · Farad (F) · Henry (H)
Ohm's Law
V = I × R
Power
P = V × I = I²R = V²/R
RMS (sine)
RMS = 0.707 × peak · peak = 1.414 × RMS
Aircraft power
28 V DC · 115 V AC 400 Hz
Series / parallel
Series: R adds, same current · Parallel: R reduces, same voltage
Reactance
Capacitor falls with f · Inductor rises with f · LC resonance = tuning
Part B — Oral / viva (tap to reveal model answers)
Name the four basic electrical quantities and their units.
Model Answer:
Voltage — volt (V); current — ampere (A); resistance — ohm (Ω); power — watt (W).
State Ohm's Law and the three forms of the power formula.
Model Answer:
Ohm's Law: V = I × R. Power: P = V × I, also I²R and V²/R.
What is the difference between AC and DC, and what is RMS?
Model Answer:
DC flows in one direction at a steady value; AC reverses periodically as a sine wave, its cycles per second being the frequency. The RMS value is the equivalent DC that does the same heating — for a sine wave, 0.707 times the peak. Radio signals are AC.
What factors affect the resistance of a conductor?
Model Answer:
Its length (more = higher), cross-sectional area (more = lower), the material's resistivity, and temperature (higher temperature = higher resistance for most metals).
How do resistances combine in series and in parallel?
Model Answer:
In series they add (R = R+ + R&sub2; + ...), with the same current through each. In parallel the reciprocals add (1/R = 1/R+ + 1/R&sub2; + ...), giving a total less than the smallest, with the same voltage across each.
Why does a radio need capacitors and inductors, not just resistors?
Model Answer:
Their opposition to AC (reactance) depends on frequency — capacitive reactance falls and inductive reactance rises with frequency. Combined as a tuned LC circuit they resonate at one frequency, which is how a radio is tuned to a station.
State the relationship between frequency and wavelength.
Model Answer:
c = f × λ, where c is the speed of radio waves (3 × 10&sup8; m/s). They are inversely proportional — higher frequency means shorter wavelength, λ = c/f.
Part C — Numerical problems (tap for worked solutions)
P1. A 12 V battery with 0.5 Ω internal resistance drives a 5.5 Ω lamp. Find the current and the lamp voltage.
Solution:
total R = 0.5 + 5.5 = 6 Ω; I = 12/6 = 2 A; lamp p.d. = I × 5.5 = 11 V (1 V is lost internally).
P2. A transmitter draws 4 A from the 28 V bus. What input power, and if it is 60% efficient, what is the RF output?
Solution:
input P = 28 × 4 = 112 W; output = 0.6 × 112 ≈ 67 W.
P3. Find the wavelength of the emergency frequency 121.5 MHz.
Solution:
λ = 3×10&sup8; ÷ 121.5×10&sup6; ≈ 2.47 m.
P4. Three resistors 6 Ω, 3 Ω and 2 Ω in parallel — find the total.
